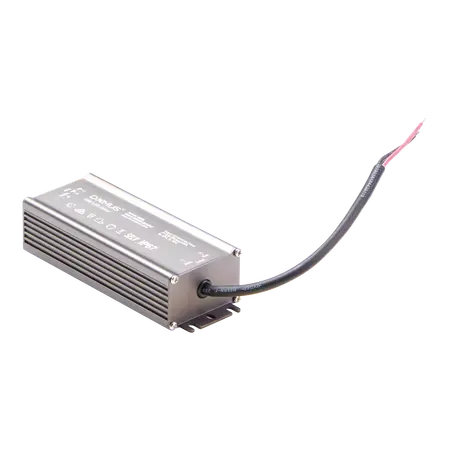

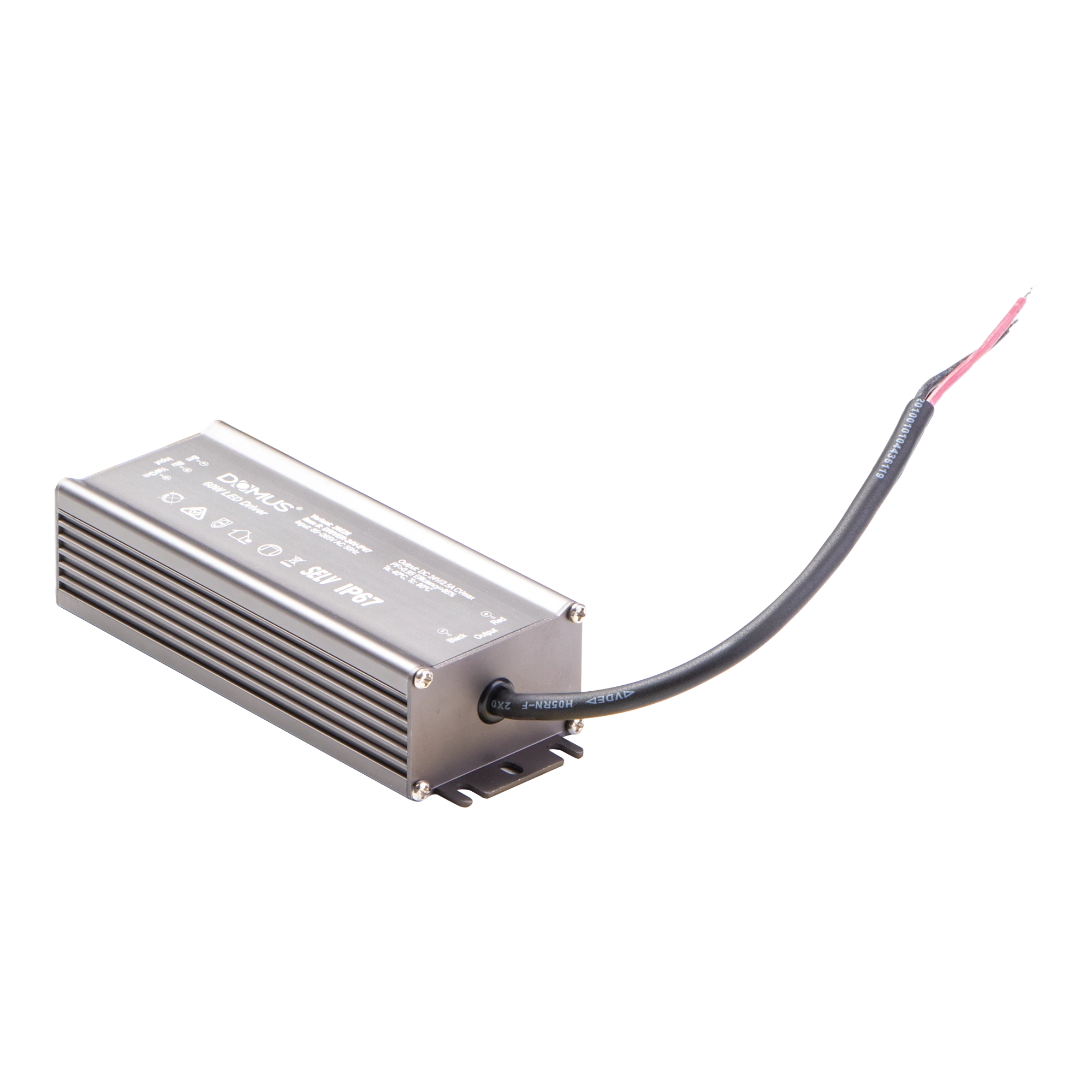

LED Driver 60W 24V DC Constant Voltage IP67 Dimmable Domus
Domus 60W 24V DC constant voltage LED driver, IP67, dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V Constant Voltage LED Driver, Outdoor LED Power Supply, TRIAC Dimmable LED Driver, DRIVER-24V-IP67-DIM 60W
Technical Specifications
- Model: DRIVER-24V-IP67-DIM
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Output Current: 2.5A
- Power Rating: 60W
- Dimming: TRIAC dimmable with compatible dimmers
- IP Rating: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Flicker Free: Yes
- Protection: Short circuit, thermal overload, over-temperature and over-voltage protection
- Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring configuration
- Operating Temperature: -30°C to +45°C
- Operating Humidity: 5% to 95% RH
- Dimensions (H x L x W): 28mm x 155mm x 42mm
- Weight: 0.608 kg
Key Features
- 24V DC constant voltage output for compatible LED strips and fittings
- 60W capacity with 2.5A maximum output current
- TRIAC dimmable when paired with a compatible dimmer
- IP67-rated housing for outdoor and weather-exposed installations
- Built-in short circuit, thermal overload, over-temperature and over-voltage protection
- Flicker-free operation
- Supplied with 1m flex and plug
- Suitable for parallel wiring
- Designed for LED strips, inground uplighters, garden spike lights and landscape lighting
Professional Installation Requirements
- The 240V AC mains connection should be installed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements. Confirm dimmer compatibility before installation.
Applications
- 24V constant voltage LED strip lighting
- Outdoor and landscape lighting
- Inground uplighters
- Garden spike lights
- Deck and garden lighting
- Residential and commercial architectural lighting
- Replacement of compatible 24V LED power supplies
Standards & Compliance
- Applicable safety standard: AS 61347.2.13:2018 for electronic controlgear associated with LED modules, read in conjunction with AS/NZS 61347.1:2016
- Mains installation should comply with AS/NZS 3000, as applicable
Environmental Benefits
- Up to 89% efficiency can reduce electrical losses during operation
- IP67 weather protection supports reliable outdoor service and may reduce premature replacement waste
- Designed for extended service life with thermal, over-voltage and short-circuit protection
- Compatible with energy-efficient 24V LED lighting systems
Warranty Information
5-year replacement warranty for residential use and 3-year replacement warranty for commercial use, subject to Domus Lighting warranty conditions, licensed installation and proof of purchase.
Available Now
Available through Domus Lighting's authorised Australian electrical wholesalers, lighting retailers and online stockists.
