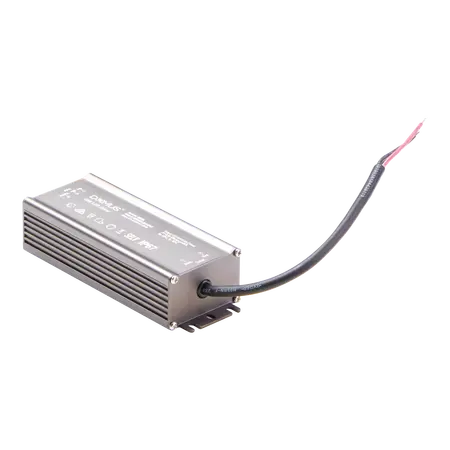

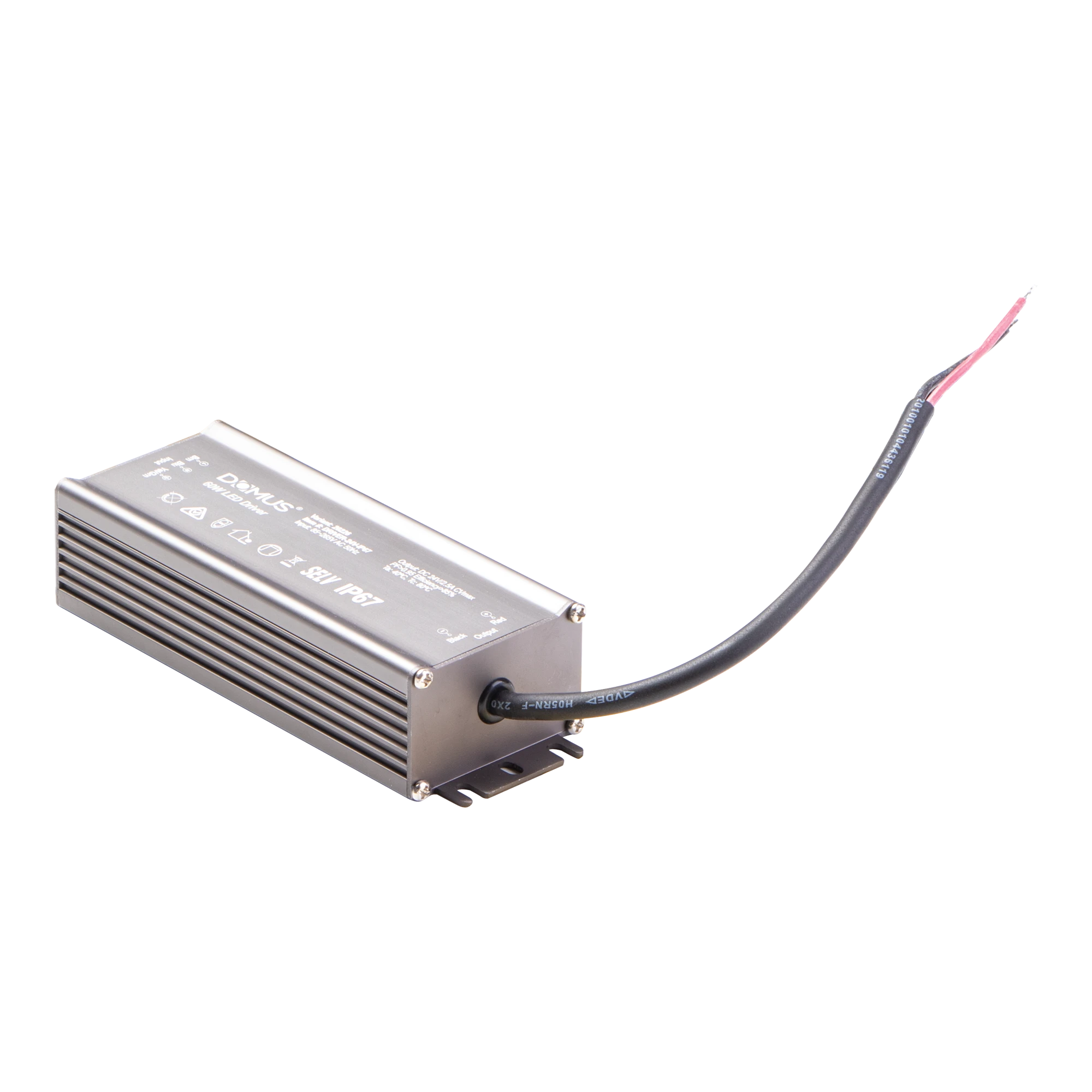

LED Driver 60W 24V DC Constant Voltage IP67 Non-Dimmable Domus
Domus 60W 24V DC constant voltage LED driver, IP67, non-dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DRIVER-24V-IP67 60W, 24V LED Power Supply, Weatherproof LED Driver, Constant Voltage LED Transformer
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Output Current: 2.5A
- Rated Power: 60W
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Efficiency: Up to 89%
- Power Factor: Greater than 0.95
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH, non-condensing
- Cable and Plug: Supplied with 1m flex and plug
- Wiring: Parallel wiring
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Dimensions (H x L x W): 35mm x 154mm x 56mm
- Weight: 0.45 kg
Key Features
- Constant-voltage 24V DC output for compatible LED strip and fittings
- IP67-rated enclosure for suitable outdoor and weather-exposed applications
- Non-dimmable design
- 2.5A output supports up to 60W of connected 24V LED load
- Integrated short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1m flex and plug
Professional Installation Requirements
- The 240V AC mains connection should be installed and commissioned by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Ensure the connected LED load is compatible with a 24V constant-voltage supply and does not exceed 60W.
Applications
- 24V constant-voltage LED strip lighting
- Outdoor architectural and feature lighting
- Inground uplighters
- Garden spike lighting
- Outdoor low-voltage LED fittings
- Residential, commercial and landscape lighting systems
Standards & Compliance
- AS/NZS 61347.2.13 is the applicable Australian/New Zealand product standard for electronic LED controlgear; confirm product certification or RCM documentation for the specific installation.
- AS/NZS 3000 applies to the 240V AC electrical installation and connection.
Environmental Benefits
- Up to 89% efficiency can reduce energy losses during operation compared with less efficient power supplies.
- IP67 protection helps reduce moisture-related failures in suitable outdoor installations, potentially extending service life and reducing replacement waste.
- 24V constant-voltage output supports efficient LED lighting systems with lower-voltage distribution on the secondary side.
Warranty Information
Domus provides a 5-year replacement warranty for IP67 power supplies in residential applications and a 3-year replacement warranty in commercial applications, subject to its warranty conditions, licensed installation and proof of purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
