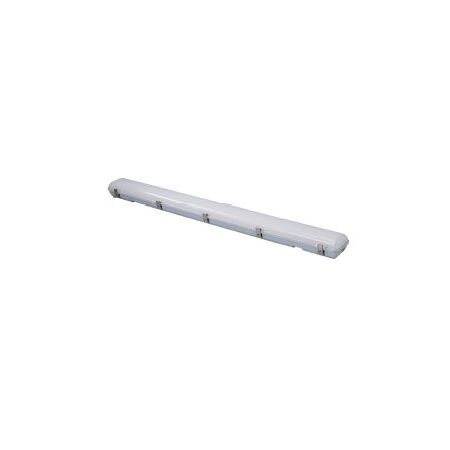

LED Emergency Batten 2x20W | 3600lm | Tri-Colour
LED emergency batten with 2x20W power and 3600lm output—ideal for commercial and industrial spaces. Built for reliability, with tri-colour options and IP65 protection for versatile surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Emergency Batten 2x20W | 3600lm | Tri-Colour
SKU: SP220WPTC-EMG
Alternatively Known As: Emergency LED Batten Light, LED Emergency Strip Light, Surface Mounted Emergency Light, Tri-Colour Emergency Batten
Technical Specifications
- Input Voltage: 220-240VAC, 50/60Hz
- LED Power: 2x20W LED strips (AC stage)
- Light Source DC wattage: 5W
- Battery: 6.4V 3000mAh LiFePO4
- Charge Time: 16 hours
- Discharge Time: 2 hours
- Operating Temperature: 0~40°C
- LED Lifespan: 40,000 hours
- Work Mode: Maintain
- Connection: Terminal block
- Classification: C0:D80, C90:D63
- Standards: AS2293.3, IEC60598-2-22
- IK Rating: IK08
- Ingress Protection: IP65
- Dimensions (H x L x W): 88mm x 1265mm x 130mm
- Weight: 3.5 kg
Key Features
- Tri-colour LED emergency batten with 2x20W LED strips
- Emergency lumen output of 3600lm
- Surface mounting installation
- Manual test switch for emergency function testing
- Red charging indicator
- Protection against over-charge and over-discharge
- IK08 impact resistance rating
- IP65 ingress protection rating
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with emergency lighting standards and safety regulations.
Applications
- Emergency lighting for commercial buildings
- Surface mounting in corridors, stairwells, and exit routes
- Suitable for industrial and public facilities requiring emergency illumination
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during normal and emergency operation
- Long LED lifespan of 40,000 hours reduces waste and replacement frequency
- Use of LiFePO4 battery enhances safety and environmental sustainability
Warranty Information
Standard manufacturer warranty applies, typically 3 years against defects.
Available Now
The LED Emergency Batten 2x20W with 3600lm tri-colour lighting is available now for immediate purchase. Ideal for commercial and industrial emergency lighting applications.
