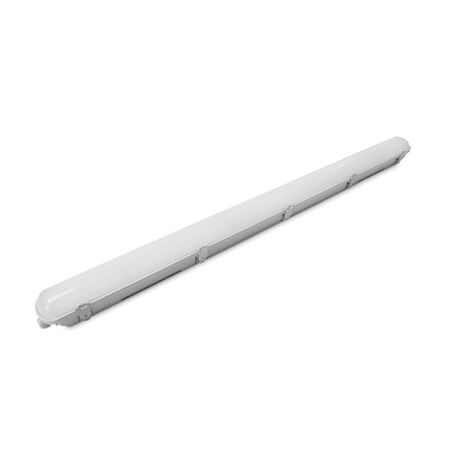

50W LED Emergency Batten | Tri-CCT | IP65 Rated | IK08 Impact Resistance | by Ektor
The 50W LED Emergency Batten is designed for commercial and industrial lighting, featuring a Tri-CCT configuration with selectable color temperatures of 4000K, 5000K, and 6500K. With an impressive efficiency of 134 lm/W and an IP65 rating for dust and water resistance, this surface-mounted luminaire ensures reliable performance in emergency situations, making it ideal for public and private buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Tri-CCT LED Batten, Surface Mount Emergency LED Light, IP65 LED Batten, Industrial LED Emergency Light
Technical Specifications
- Total System Efficiency: 134 lm/W
- Power: 50 Watts
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.16 A
- Power Factor: 0.95
- Colour Rendering Index (CRI): >80
- CCT: Tri-CCT (4000K, 5000K, 6500K)
- LED Voltage: 99 V
- LED Current: 300 mA
- LED Lifetime: >72,000 hours (L80B10)
- IP Rating: IP65
- IK Rating: IK08
- Material: Polycarbonate body and diffuser
- Driver Type: Fixed output, constant current
- Dimmable: No
- Switch Type: Inline
- Wiring: Re-wireable Flex & Plug (3 pin), 1700 mm lead
- Emergency Output Power: 2000 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 250 lm
- Operating Temperature Range: -20 to 40 °C
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Dimensions (H x L x W): 70mm x 1500mm x 60mm
- Weight: 3.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K selectable colour temperatures
- High system efficiency of 134 lm/W
- IP65 rated for dust and water resistance
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Fixed output driver with constant current mode
- Inline switch type with re-wireable flex & plug wiring
- Emergency mode with 90 minutes duration and 250 lm emergency output
- LED lifetime greater than 72,000 hours (L80B10 rating)
- Power factor of 0.95 and input voltage range 216-253Vac
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper emergency lighting functionality.
Applications
- Commercial and industrial lighting
- Emergency lighting in public and private buildings
- Surface mount installations requiring IP65 rated luminaires
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Commercial use warranty: 5 years return-to-base with first 2 years onsite. Warranty valid up to 15,000 operating hours.
Available Now
The Ektor UMBRA CORE 50W 1500mm LED Emergency Batten is available for immediate purchase, ideal for commercial and industrial emergency lighting applications requiring robust, efficient, and versatile surface-mounted luminaires.
