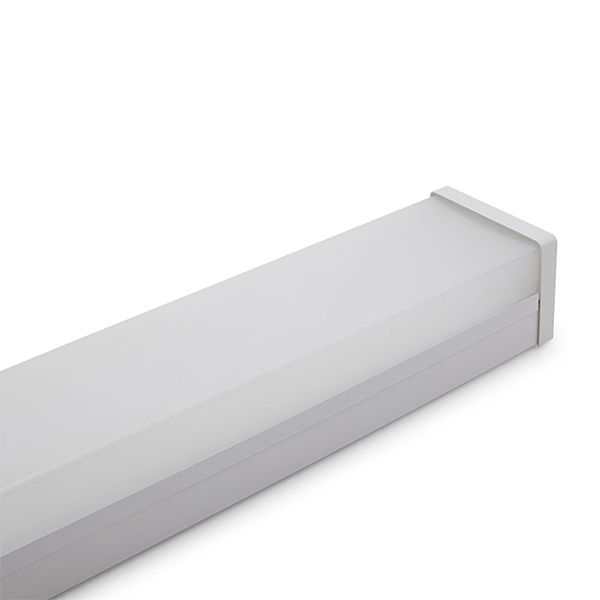

LED Emergency Batten Light | 600mm | DALI Control & Microwave Sensor | IP20 Rated | by Ektor
The UMBRA PRO 600mm Diffused LED Emergency Batten is designed for commercial and industrial emergency lighting, featuring a DALI-controlled microwave sensor with a 10m detection range. With a high system efficiency of up to 148 lm/W and a maintained emergency mode lasting 90 minutes, this batten ensures safety and reliability in corridors and escape routes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Emergency LED Batten with Sensor, DALI Emergency Batten, Surface Mounted Emergency Light
Technical Specifications
- Total System Efficiency: up to 148 lm/W
- Input Voltage: 230Vac (216-253Vac range)
- Power Factor: 0.95
- Maximum Wattage: 20 W for 600mm models
- Standby Power: 0.3 W
- Colour Temperature: 4000 K
- Colour Rendering Index (CRI): >84
- LED Lifetime: >102,000 hours (TM-21)
- IP Rating: IP20
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Driver Type: DALI DT6 LED Driver, dimmable
- Sensor Type: Microwave with DALI 2 communication
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm
- Emergency Output Power: 1900 mW
- Installation Type: Surface mount
- Dimensions (H x L x W): 70mm x 80mm x 600mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 148 lm/W
- Inbuilt mains rated DALI switch for advanced control
- Microwave sensor with 10m detection range and DALI 2 communication
- Maintained emergency mode with 90 minutes duration
- DALI monitored emergency control with test and monitoring compliance
- Powder coated steel body with PMMA diffuser
- Dimmable with DALI DT6 LED driver
- IP20 rated for indoor use
- Long LED lifetime over 102,000 hours
- Colour rendering index greater than 84 with 4000K CCT
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Corridors and escape routes
- Surface mounted lighting in workplaces and public buildings
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Particular Requirements
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Control Gear
- AS/NZS 4268 – EMC Requirements for Lighting Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring supports energy management and reduction
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 600mm Diffused LED Emergency Batten with Sensor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
