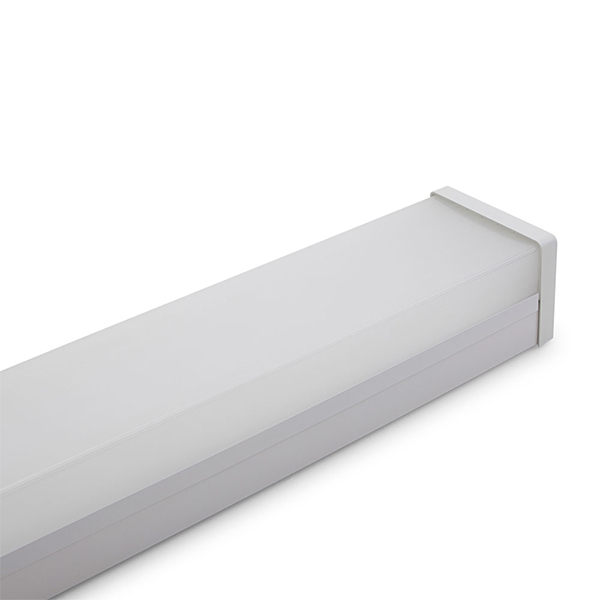

LED Emergency Batten Light | 600mm Diffused | 148 lm/W Efficiency | DALI Control | by Ektor
The UMBRA PRO 600mm Diffused LED Emergency Batten is designed for commercial and industrial emergency lighting, featuring an impressive efficiency of up to 148 lm/W and an inbuilt DALI switch for advanced control. With a maintained emergency mode lasting 90 minutes and a robust powder-coated steel body, this batten ensures reliable performance in critical situations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Diffused LED Emergency Light, Surface Mounted Emergency Batten, DALI Emergency Batten
Technical Specifications
- Total System Efficiency: up to 148 lm/W
- Input Voltage: 230Vac (216-253Vac range)
- Power Factor: 0.95
- Maximum Wattage: 20 W
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: 4000 K
- LED Voltage: 24 V
- LED Current: 650 mA
- LED Lifetime: >102,000 hours (TM-21)
- IP Rating: IP20
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Driver Type: DALI DT6 LED Driver
- Dimmable: Yes
- Emergency Duration: 90 minutes
- Emergency Output Power: 1900 mW
- Emergency Lumen Output: 350 lm
- Sensor Type (optional): Microwave with DALI-2 support
- Installation Type: Surface mount
- Dimensions (H x L x W): 70mm x 80mm x 600mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 148 lm/W
- Inbuilt mains rated DALI switch for advanced control
- Maintained emergency mode with 90 minutes duration
- Microwave sensor option with DALI-2 compliant control
- DALI DT6 LED driver with flicker-free dimming
- Powder coated steel body with PMMA diffuser
- IP20 rated for indoor use
- Long LED lifetime over 102,000 hours
- Emergency output power 1900 mW with 350 lm emergency lumen output
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial lighting
- Emergency lighting in public and private buildings
- Surface mounted lighting for corridors, stairwells, and general areas
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2.1: Particular Requirements - Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – Control Gear for LED Modules
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring supports energy management and reduction
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 600mm Diffused LED Emergency Batten is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
