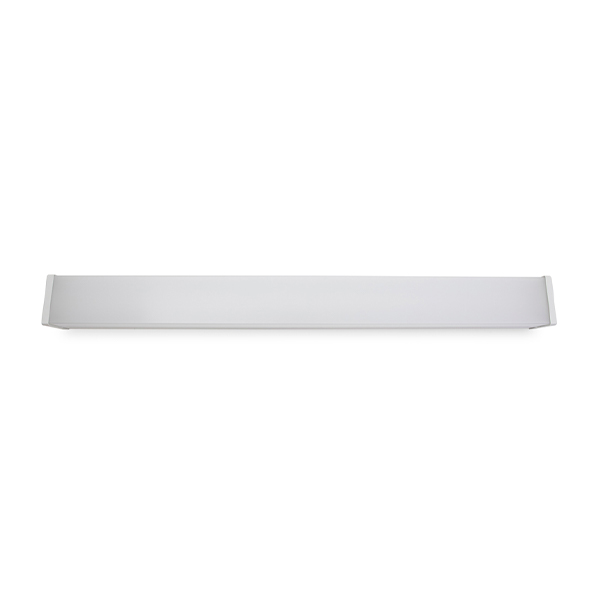

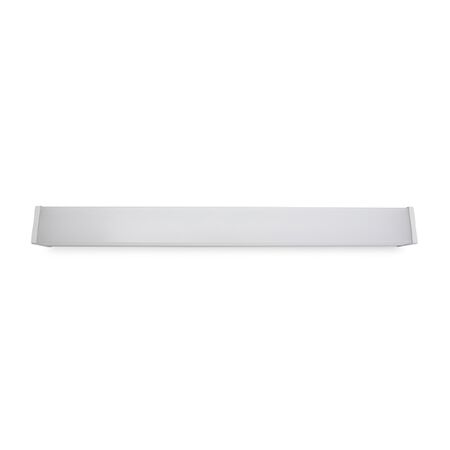

LED Emergency Batten Light | Tri-CCT Adjustable | 118 lm/W Efficiency | IP20 Rated | by Ektor

BRAND: Ektor
SKU: EV-UMBRA-ADV-DIFF-600-EM-TRI
$169.20 List price: $204.80
+ −
30 Days Return Delivery Options
The LED Emergency Batten Light with Tri-CCT adjustable settings (4000K, 5000K, 6500K) is perfect for commercial and industrial emergency lighting. With a high efficiency of 118 lm/W and a maintained emergency mode lasting 90 minutes, this surface-mounted light ensures safety in corridors and exit routes. Built with a durable powder-coated steel body and PMMA diffuser, it meets all necessary compliance standards for reliable performance.

Alternatively Known As: LED Emergency Batten Light, Tri-CCT Emergency Batten, Diffused LED Emergency Light, 600mm LED Emergency Batten

Technical Specifications
  • Power Wattage: 17 W
  • Input Voltage: 230Vac (216-253Vac range)
  • Input Frequency: 50 Hz
  • Power Factor: 0.9
  • Input Current: 0.1 A
  • Colour Rendering Index (CRI): >80
  • CCT Configuration: Tri-CCT (4000K, 5000K, 6500K)
  • LED Voltage: 42 V
  • LED Current: 350 mA
  • IP Rating: IP20
  • Material: Powder Coated Steel body, PMMA diffuser
  • Driver Type: Fixed output, constant current
  • Dimmable: No
  • Switch Type: Inline
  • Installation Type: Surface mount
  • LED Lifetime: >60000 hours (L70B10 at 25°C and 40°C)
  • Emergency Duration: 90 minutes
  • Emergency Output Power: 3400 mW
  • Standby Power: 1 W
  • Short Term Light Modulation (PstLM): 0.1
  • Stroboscopic Visibility Measure (SVM): 0.4
  • Dimensions (H x L x W): 70mm x 80mm x 600mm
  • Weight: 1.5 kg
Key Features
  • Tri-CCT (Colour Temperature) adjustable: 4000K, 5000K, 6500K
  • High system efficiency up to 118 lm/W
  • Maintained emergency mode with 90 minutes duration
  • IP20 rated for indoor use
  • Powder coated steel body with PMMA diffuser
  • Fixed output driver with constant current mode
  • Inline switch type with re-wireable terminal block
  • Microwave sensor option available with adjustable settings
  • LED lifetime >60000 hours (L70B10 rating)
  • Non-dimmable
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper emergency lighting functionality.
Applications
  • Commercial and industrial emergency lighting
  • Surface mounted indoor lighting for corridors, stairwells, and emergency exit routes
  • Suitable for areas requiring tri-colour temperature adjustable LED emergency lighting
Standards & Compliance
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • AS/NZS 4268
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long LED lifetime reduces waste and replacement frequency
  • Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information

VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours.

Available Now

The Ektor UMBRA ADVANCED 600mm Diffused LED Emergency Batten - Tri-CCT is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
