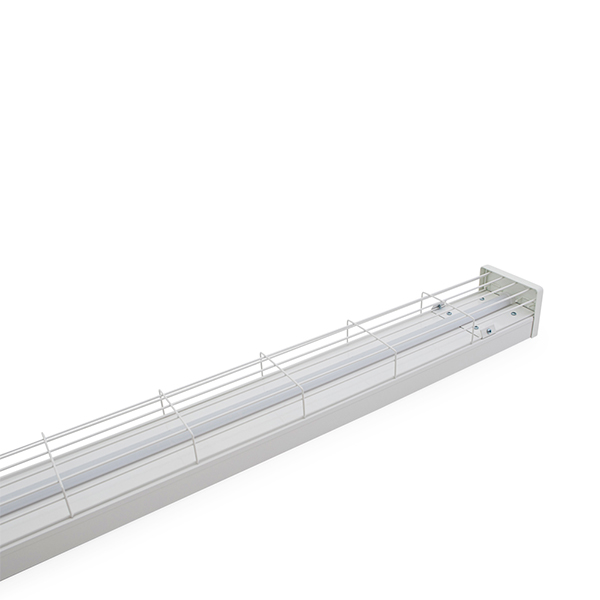

LED Emergency Batten Light | Tri-CCT Configuration | 120 lm/W Efficiency | IP20 Rated | by Ektor

BRAND: Ektor
SKU: EV-UMBRA-ADV-WG-1200-EM-TRI
$184.20 List price: $223.00
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Delivery Options
The LED Emergency Batten Light features a Tri-CCT configuration, allowing you to select from multiple color temperatures for optimal lighting in any environment. With a high total system efficiency of 120 lm/W and an IP20 rating, this surface-mounted light is perfect for commercial buildings, corridors, and stairwells. Designed for maintained emergency lighting, it ensures safety compliance with a 90-minute emergency duration.

Alternatively Known As: LED Emergency Batten Light, Wireguard Emergency LED Batten, Tri-CCT Emergency Light, Surface Mount Emergency Batten

Technical Specifications
  • Total System Efficiency: 120 lm/W
  • IP Rating: IP20
  • Body Material: Powder Coated Steel
  • Diffuser Material: PMMA
  • Installation Type: Surface mount
  • Working Temperature Range: 0 to 40 °C
  • Input Frequency: 50 Hz
  • Power Factor: 0.9
  • Maximum Wattage: 36 W
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Current: 0.2 A
  • Standby Power: 1 W
  • Colour Rendering Index (CRI): >80
  • CCT Configuration: Tri-CCT
  • Macadam Steps: 4-step MacAdam Ellipse
  • LED Voltage: 42 V
  • LED Current: 800 mA
  • LED Lifetime: >54,000 hours (L70B10)
  • Driver Type: Fixed output, constant current
  • Dimmable: No
  • Wiring Type: Re-wireable terminal block (3 pin)
  • Short Term Light Modulation (PstLM): 0.1
  • Stroboscopic Visibility Measure (SVM): 0.4
  • Emergency Mode: Maintained
  • Emergency Duration: 90 minutes
  • Emergency Output Power: 3400 mW
  • Emergency Lumen Output: 400 lm
  • Product Design Life: 8 years at 16 hours daily use
  • Dimensions (H x L x W): 60mm x 1200mm x 70mm
  • Weight: 3.5 kg
Key Features
  • Tri-CCT configuration with selectable colour temperatures
  • High total system efficiency of 120 lm/W
  • IP20 rated surface mount design with powder coated steel body
  • Inline switch type with re-wireable terminal block wiring
  • Maintained emergency mode with 90 minutes duration
  • LED lifetime greater than 54,000 hours (L70B10 rating)
  • Colour rendering index (CRI) greater than 80
  • Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4
  • Energy savings scheme approvals including Ipart, REES, and VEU
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with Australian standards and optimal emergency lighting performance.
Applications
  • Emergency lighting in commercial buildings
  • Surface mounted lighting for corridors and stairwells
  • Maintained emergency lighting for safety compliance
Standards & Compliance
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
Environmental Benefits
  • High system efficiency reduces energy consumption
  • Long LED lifetime minimizes waste and replacement frequency
  • Complies with energy savings schemes promoting sustainability
Warranty Information

VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base with onsite warranty available to registered users in defined regions. Warranty covers up to 25,000 operating hours.

Available Now

The Ektor UMBRA ADVANCED 1200mm Wireguard LED Emergency Batten is available for immediate purchase, ideal for commercial and emergency lighting applications.
