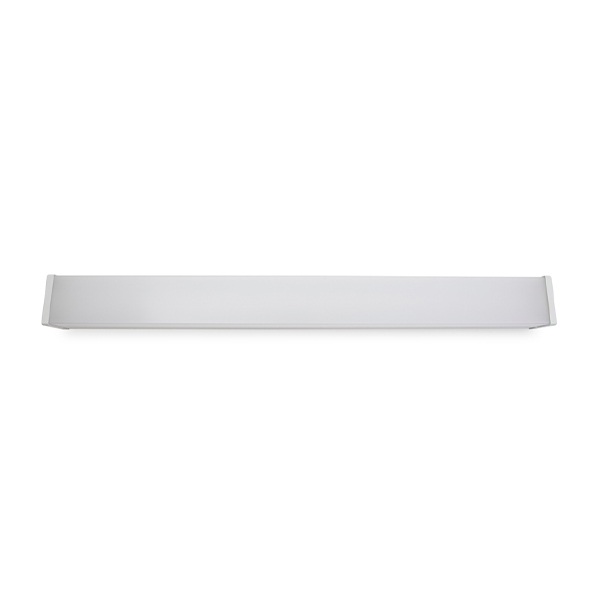

LED Emergency Batten Light | Tri-CCT Configuration | 136 lm/W Efficiency | Maintained Emergency Mode | by Ektor
The LED Emergency Batten Light features a versatile Tri-CCT configuration, allowing you to choose between different color temperatures for optimal lighting. With a high efficiency of 136 lm/W and a maintained emergency mode providing 90 minutes of illumination, this batten is perfect for commercial and industrial applications. Its durable powder-coated steel body and PMMA diffuser ensure longevity and reliability in indoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Tri-CCT LED Batten, Diffused LED Emergency Light, Surface Mounted LED Batten, Emergency LED Strip Light
Technical Specifications
- Dimensions (H x L x W): 70mm x 1200mm x 60mm
- Weight: 2.5 kg
Key Features
- Tri-CCT (Correlated Colour Temperature) configuration for versatile lighting options
- High total system efficiency up to 136 lm/W
- Maintained emergency mode with 90 minutes duration
- IP20 rated for indoor use
- Powder coated steel body with PMMA diffuser
- Fixed output driver with constant current mode
- Non-dimmable
- Inline switch type
- Microwave sensor options available with adjustable settings
- Long LED lifetime greater than 60,000 hours (L70B10)
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety regulations.
Applications
- Commercial and industrial lighting
- Emergency lighting in buildings
- Surface mounted lighting for corridors, stairwells, and general areas
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long product design life of 8 years reduces waste and replacement frequency
- Low standby power consumption (1 W) minimizes energy use when idle
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 1200mm Diffused LED Emergency Batten is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
