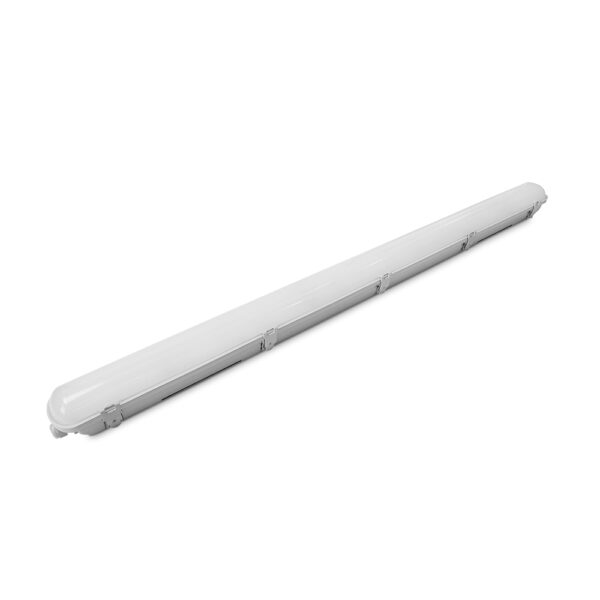

LED Emergency Batten Light | Tri-CCT | IP65 Rated | 36W Power | by Ektor
The LED Emergency Batten Light is designed for reliable emergency lighting in commercial and industrial settings. Featuring a Tri-CCT configuration with 4000K, 5000K, and 6500K color temperatures, this batten ensures optimal visibility during emergencies. With an impressive total system efficiency of 134 lm/W and an IP65 rating for dust and water resistance, it’s perfect for surface-mounted applications and emergency escape routes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Tri-CCT LED Batten, Surface Mount Emergency Light, IP65 LED Batten, Ektor Emergency LED Light
Technical Specifications
- Power: 32 W maximum
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.16 A
- Power Factor: 0.95
- Colour Rendering Index (CRI): >80
- LED Voltage: 99 V
- LED Current: 300 mA
- LED Lifetime: >72,000 hours (L80B10 at 25°C and 40°C)
- CCT: Tri-CCT (4000K, 5000K, 6500K)
- Lumens Output: Up to 4300 lm at 5000K
- IP Rating: IP65
- IK Rating: IK08
- Driver Type: Fixed output, constant current
- Dimmable: No
- Switch Type: Inline
- Wiring: Re-wireable Flex & Plug (3 pin), 1700 mm lead length
- Emergency Output Power: 2000 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 250 lm
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Dimensions (H x L x W): 70mm x 1200mm x 60mm
- Weight: 3.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K colour temperatures
- High total system efficiency of 134 lm/W
- IP65 rated for dust and water resistance
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Inline switch type with power factor of 0.95
- Non-dimmable fixed output driver
- Re-wireable flex & plug (3 pin) wiring
- Emergency mode with 90 minutes duration and 250 lm emergency output
- Long LED lifetime greater than 72,000 hours (L80B10)
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4 for visual comfort
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal emergency lighting performance.
Applications
- Emergency lighting in commercial buildings
- Surface mounted lighting for industrial and retail spaces
- Emergency escape routes and exit pathways
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available for registered users in defined regions. Warranty valid up to 15,000 operating hours.
Available Now
The UMBRA CORE 36W 1200mm LED Emergency Batten by Ektor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
