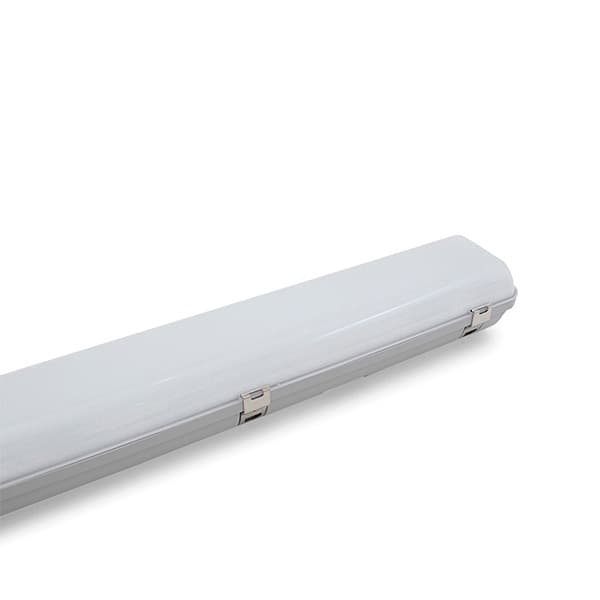

LED Emergency Batten Light | Tri-CCT Adjustable | IP65 Rated | Microwave Sensor | by Ektor
The LED Emergency Batten Light is designed for commercial and industrial applications, featuring a Tri-CCT adjustable color temperature and an IP65 rating for dust and water resistance. With a microwave sensor for enhanced functionality, this batten ensures reliable emergency lighting in corridors and exit routes, making it perfect for any surface mount installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Tri-CCT LED Batten, IP65 Emergency LED Light, Sensor LED Batten, Surface Mount Emergency Light
Technical Specifications
- Total System Efficiency: up to 118 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.9
- Maximum Wattage: 17 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Current: 0.1 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (4000K, 5000K, 6500K)
- Lamp/LED Voltage: 42 V
- Lamp/LED Current: 350 mA
- LED Lifetime: >60000 hours (L70B10 at 25°C and 40°C)
- Driver Type: Fixed output, constant current
- Driver Included: Yes
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 400 lm
- Sensor Type: Microwave
- Detection Range: 10 m
- Time Delay: 5 seconds to 14 minutes
- Adjustable Lux, Hold Time, Standby Level, Standby Period, Detection Area/Sensitivity
- Dimensions (H x L x W): 70mm x 1200mm x 50mm
- Weight: 1.5 kg
Key Features
- Tri-CCT (3000K, 4000K, 5000K) adjustable colour temperature
- IP65 rated for dust and water resistance
- IK08 impact resistance
- Microwave sensor with adjustable detection range and hold time
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 118 lm/W
- Fixed output driver with power factor 0.9
- Non-dimmable
- Re-wireable terminal block wiring
- Long LED lifetime >60000 hours (L70B10)
- Standby power consumption of 1W
- Inline switch type
- Grey polycarbonate body and diffuser
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sensor configuration.
Applications
- Commercial and industrial lighting
- Emergency lighting in corridors and exit routes
- Surface mount installations requiring IP65 rated luminaires
- Areas requiring tri-colour temperature adjustable LED lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2: Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- High energy efficiency reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- IP65 rating protects against environmental damage, extending product life
- Low standby power reduces unnecessary energy use
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours or warranty period, whichever occurs first.
Available Now
The Ektor UMBRA ADVANCED 1200mm LED Emergency Batten is available for immediate purchase, ideal for commercial and industrial emergency lighting applications requiring reliable, adjustable colour temperature and sensor functionality.
