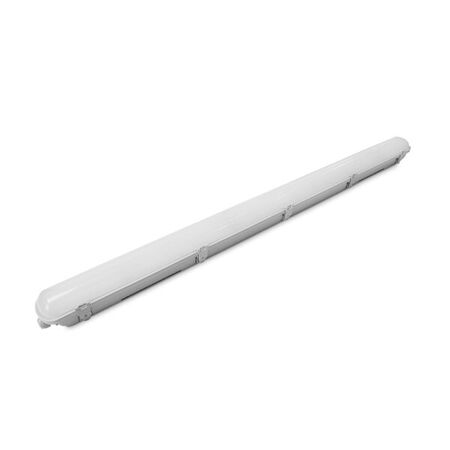

1200mm LED Emergency Batten | Tri-CCT | IP65 Rated | 134 lm/W Efficiency | by Ektor
The 1200mm LED Emergency Batten with Tri-CCT configuration offers versatile lighting options at 4000K, 5000K, and 6500K. With an impressive total system efficiency of 134 lm/W and an IP65 rating for dust and water resistance, this batten is perfect for emergency lighting in commercial and industrial settings. Built with a durable polycarbonate body, it ensures long-lasting performance and reliability in critical situations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 1200mm LED Emergency Batten, Tri CCT Emergency Light, Surface Mount LED Emergency Batten, IP65 LED Emergency Light
Technical Specifications
- Total System Efficiency: 134 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Maximum Wattage: 32 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.16 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: TRI-CCT (4000K, 5000K, 6500K)
- LED Voltage: 99 V
- LED Current: 300 mA
- LED Lifetime: >72000 hours (L80B10 rating)
- Driver Type: Fixed output, constant current
- Dimmable: No
- Wiring Type: Re-wireable Flex & Plug (3 pin), 1700 mm lead
- Emergency Output Power: 2000 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 250 lm
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Dimensions (H x L x W): 70mm x 1200mm x 50mm
- Weight: 3.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K colour temperatures
- High total system efficiency of 134 lm/W
- IP65 rated for dust and water resistance
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Inline switch type with power factor of 0.95
- Non-dimmable fixed output driver included
- Re-wireable Flex & Plug (3 pin) wiring type with 1700 mm lead
- Emergency mode with 90 minutes duration and 250 lm emergency output
- LED lifetime greater than 72,000 hours (L80B10 rating)
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4 for visual comfort
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper emergency lighting functionality.
Applications
- Emergency lighting in commercial buildings
- Surface mount lighting for industrial and retail spaces
- Emergency exit and safety lighting in public areas
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 15,000 operating hours.
Available Now
The Ektor UMBRA CORE 1200mm LED Emergency Batten - Tri CCT is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
