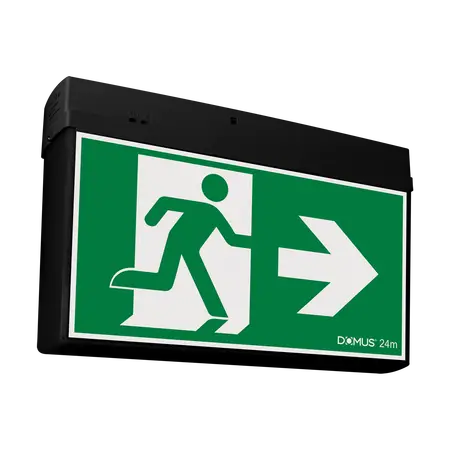

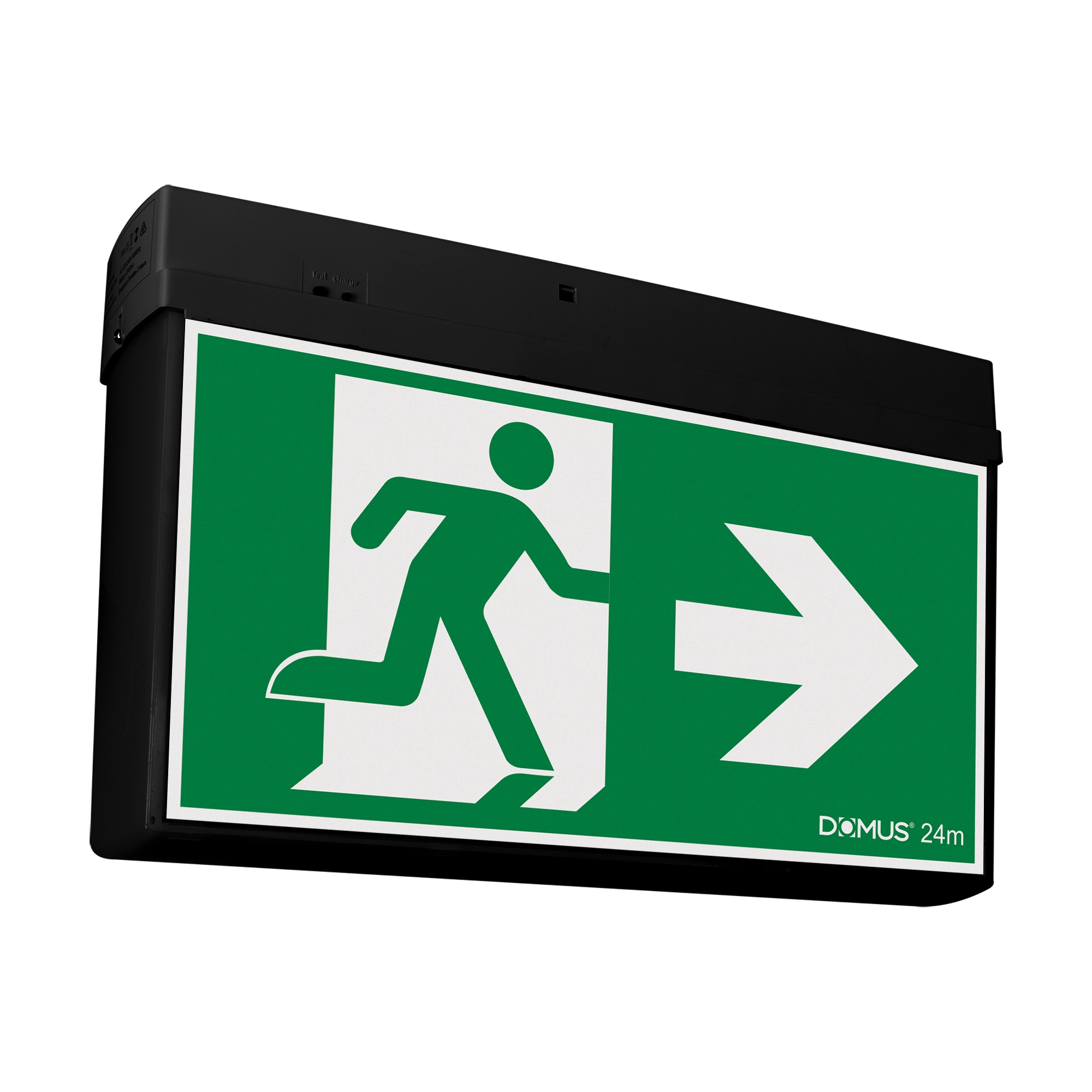

LED Exit Sign 24m 2.5W Maintained/Non-Maintained Black Domus
Domus surface mount LED exit sign, 24m viewing distance, 2.5W, maintained/non-maintained selectable, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Exit Sign, Maintained/Non-Maintained Exit Light, Surface-Mounted Exit Sign, Domus 66100
Technical Specifications
- Model: EXIT-SM-24M
- Variant: 66100
- Input Voltage: 240 V AC
- Power Consumption: 3.5 W
- Frequency: 50 Hz
- Viewing Distance: 24 m
- Emergency Duration: 120 minutes
- Battery Type: LiFePO4
- Battery Voltage: 3.2 V
- Battery Capacity: 1800 mAh
- Charging Time: 24 hours
- Light Output: 80 lm
- Colour Temperature: 6000 K
- LED Type: SMD2835
- IP Rating: IP20
- Ambient Temperature: 0–40 °C
- Operation: Maintained or non-maintained
- Mounting: Wall, ceiling or suspended
- Decals: Single- and double-sided directional inserts included
- Dimensions (H x L x W): 207mm x 333mm x 80mm
- Weight: 1.3 kg
Key Features
- Suitable for 24 m viewing distances
- Selectable maintained or non-maintained operation
- Energy-efficient integrated LED light source
- 120-minute emergency operation
- Replaceable LiFePO4 battery
- Quick-release construction for decal and battery access
- Black finish with wall, ceiling or suspended mounting options
- IP20 rating for indoor commercial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable requirements of AS/NZS 2293.1. The unit connects to a 240 V unswitched active supply.
Applications
- Commercial buildings
- Apartment complexes
- Shopping centres
- Offices
- Hospitality venues
- Indoor emergency exit and evacuation-route signage
Standards & Compliance
- AS/NZS 2293.3 for emergency luminaires and exit signs
- Installation, commissioning and maintenance should follow AS/NZS 2293.1
Environmental Benefits
- LED technology provides an energy-efficient light source compared with conventional emergency sign lighting
- Replaceable LiFePO4 battery can extend service life and reduce complete-unit replacement waste
- Long-life LED design reduces lamp replacement frequency and associated waste
Warranty Information
Domus commercial emergency lighting warranty: 4-year replacement warranty, including a 4-year battery warranty. Residential applications are covered by a 5-year replacement warranty with a 4-year battery warranty, subject to Domus warranty conditions and licensed installation.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
