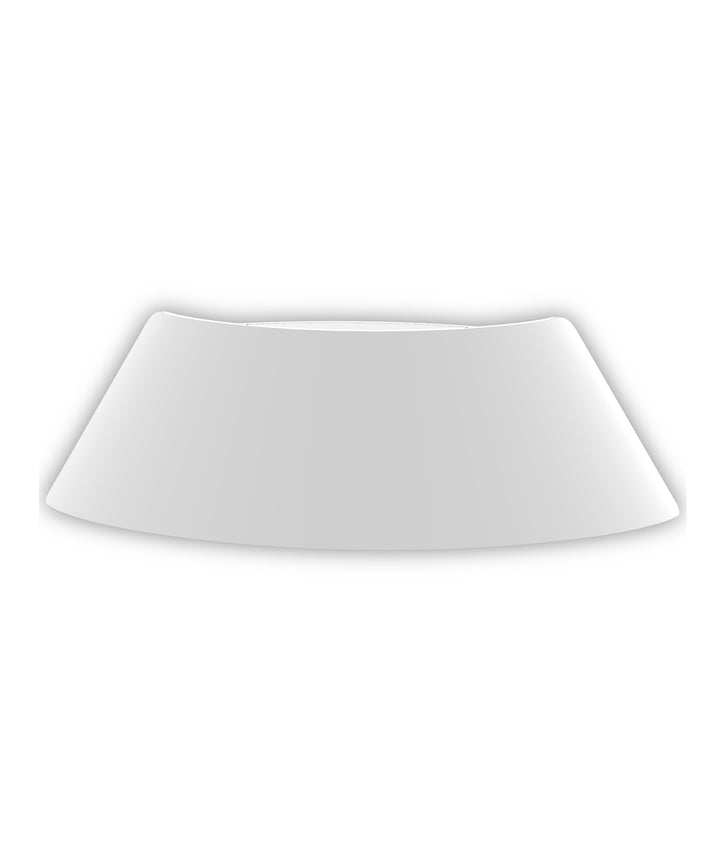

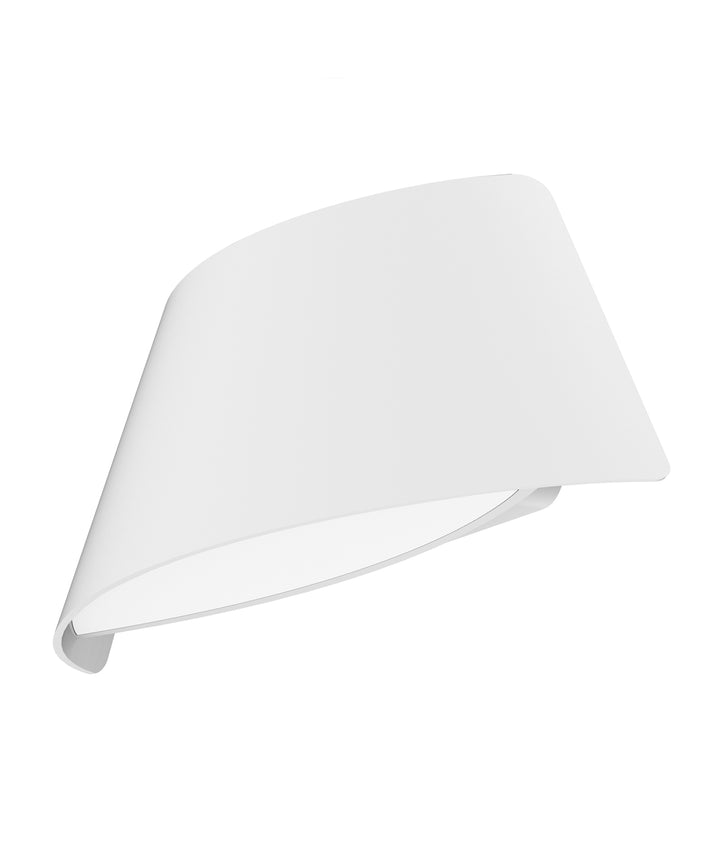

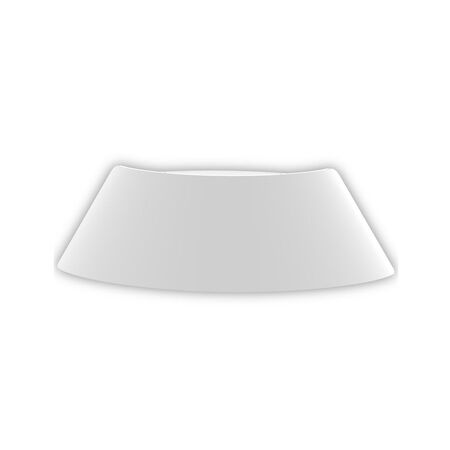

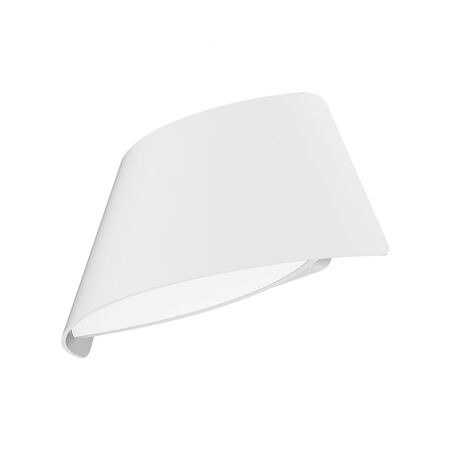

LED Exterior Surface Mounted Curved Up/Down Wall Light | IP65 Rated | 531 Lumens Output | 3000K Warm White | by CLA Lighting
Illuminate your outdoor spaces with the LED Exterior Surface Mounted Curved Up/Down Wall Light, featuring a powerful 9W consumption and 531 lumens output. With an IP65 rating, this light is perfect for residential and commercial applications, providing broad illumination with a 120-degree beam angle. Its matte white aluminium housing and polycarbonate diffuser ensure durability and a modern aesthetic, making it ideal for pathways, gardens, and building facades.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power: 9W
- Input Voltage: 100-230V AC, 50/60Hz
- Lumens: 531 lm
- Colour Temperature: 3000K (Warm White)
- Beam Angle: 120 degrees
- CRI: >80
- Power Factor: >0.5
- Material: Aluminium housing, Polycarbonate diffuser
- IP Rating: IP65
- LED Chips: 8pcs 3030
- Ambient Temperature Range: -20°C to 50°C
- Back Plate Size: 135x50mm, Depth: 8mm
- Not suitable for dimmers
- Dimensions (H x L x W): 75mm x 75mm x 236mm
- Weight: 0.65 kg
Key Features
- Exterior LED surface mounted up/down curved wall light
- 9W power consumption with 531 lumens output
- Matte white aluminium housing with polycarbonate diffuser
- IP65 rated for protection against dust and water jets
- Wide beam angle of 120 degrees for broad illumination
- High color rendering index (CRI > 80) for natural light appearance
- Suitable for 2-way switching
- Not compatible with dimmers
- Operates in ambient temperatures from -20°C to 50°C
- Power factor greater than 0.5
- Compatible with PIR and microwave sensors
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Exterior lighting for residential homes
- Outdoor commercial building facades
- Pathway and garden wall illumination
- Suitable for use with PIR or microwave sensors for automated lighting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces electricity consumption.
- Long lifespan reduces waste and replacement frequency.
- IP65 rating ensures durability, minimizing environmental impact from frequent replacements.
Warranty Information
3 year replacement warranty.
Available Now
The CLA Lighting ATEN LED Exterior Surface Mounted Curved Up/Down Wall Light IP65 is available for immediate purchase, ideal for enhancing outdoor residential and commercial lighting.
