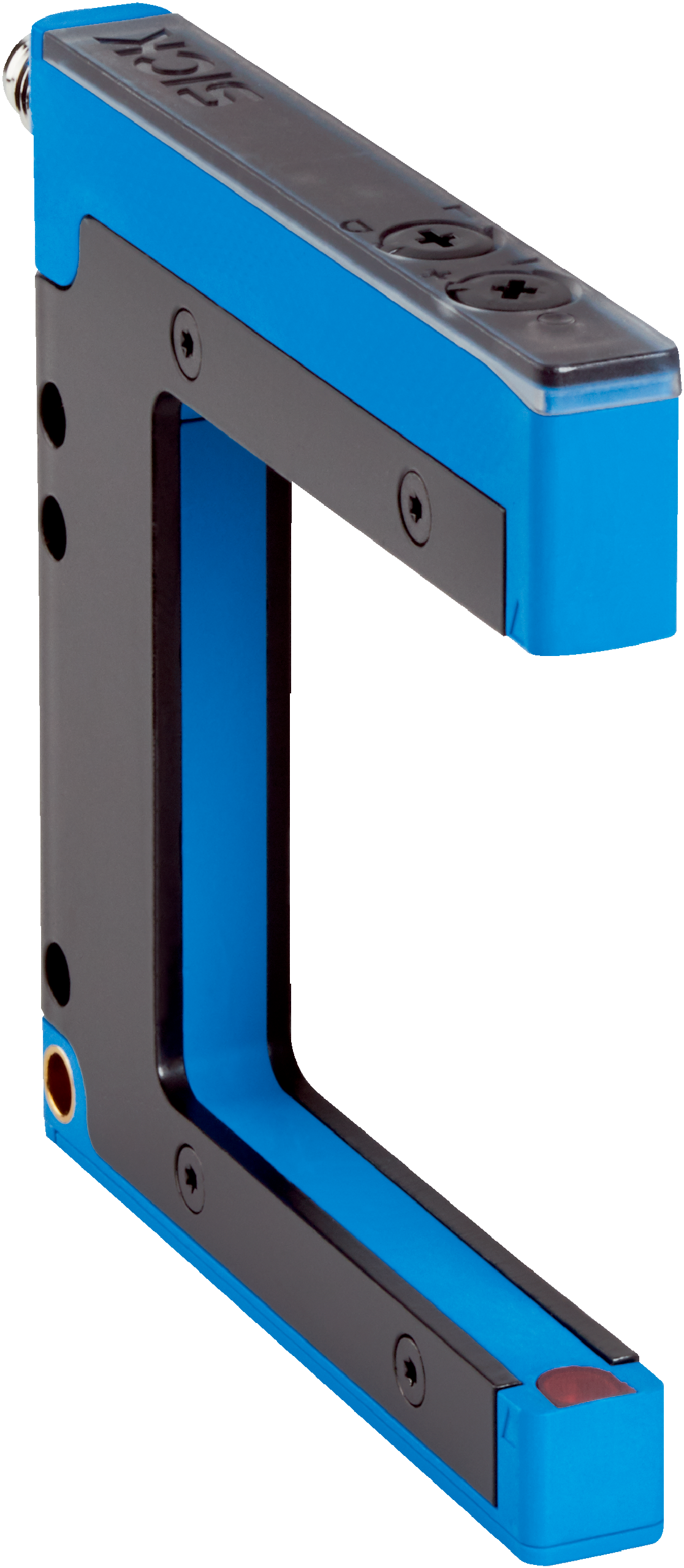

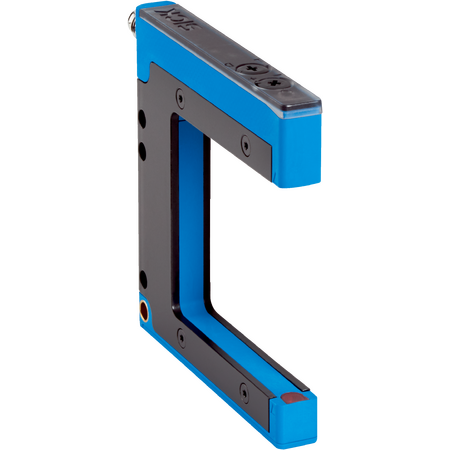

LED Fork Sensor WFE-050060B337 | IP67 Rated | 5 kHz Switching Frequency | 50mm Fork Width | by SICK
The LED Fork Sensor WFE-050060B337 is designed for industrial automation, featuring a high switching frequency of 5 kHz and an IP67 rated enclosure for dust and water protection. With a minimum detectable object size of just 0.5 mm, this sensor is perfect for precise object detection in manufacturing lines and safety systems. Built with durable ABS coated carbon steel, it ensures longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Fork Sensor, Optical Fork Sensor, SICK Fork Sensor WFE-050060B337
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Protection class: III
- Enclosure rating: IP67
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Light source: LED visible red light
- Fork width: 50 mm
- Fork depth: 60 mm
- Housing material: ABS coated carbon steel
- Dimensions (H x L x W): 79mm x 79mm x 10mm
- Weight: 0.1 kg
Key Features
- LED visible red light source
- Minimum detectable object size of 0.5 mm
- Potentiometer for light/dark switching adjustment
- Push-pull PNP/NPN switching output
- High switching frequency of 5 kHz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected
- Connector M8, 3-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing lines requiring precise sensing
- Safety and control systems in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 30 mA current draw
- Durable ABS coated carbon steel housing extends product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK WFE-050060B337 LED Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise object detection.
