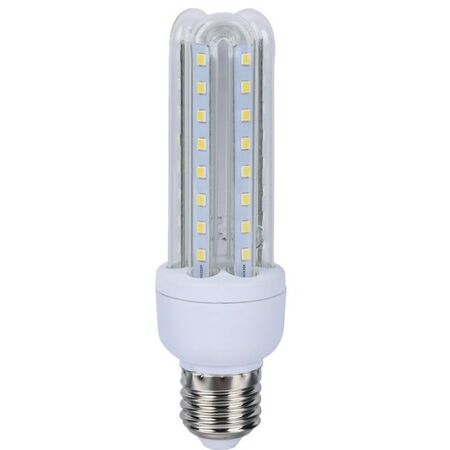

LED Globe 3U 9W | 12V AC/DC | 6500K Daylight
LED globe with 9W power and 6500K daylight color—ideal for energy-efficient lighting. Built for versatile use, with 12V AC/DC compatibility and ES base for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Globe 3U 9W | 12V AC/DC | 6500K Daylight
SKU: 3U003
Alternatively Known As: 12V LED Globe, 9W LED Bulb, Daylight LED Globe, 3U LED Lamp
Technical Specifications
- Input voltage: 12V AC/DC 50/60Hz
- Nominal current: 1A
- Material: PBT & glass
- Wattage: 9W
- Colour temperature: 6500K
- Lumens output: 780 lm
- CRI: >80
- Beam angle: 270°
- LED chips: 48pcs 2835 LED
- Ambient temperature range: -15 to 50°C
- IP rating: IP20
- Not suitable for dimming
- Recommended iron core transformer and constant voltage LED driver
- Dimensions (H x L x W): 110mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Input voltage: 12V AC/DC 50/60Hz
- Nominal current: 1A
- Material: PBT & glass
- Wattage: 9W
- Colour temperature: 6500K (Daylight)
- Lumens output: 780 lm
- CRI > 80 for good colour rendering
- Beam angle: 270°
- 48pcs 2835 LED chips
- Operating ambient temperature: -15 to 50°C
- Not suitable for dimming
- IP20 rated
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct transformer and driver compatibility and safe operation.
Applications
- Residential lighting
- Accent lighting
- Low voltage lighting systems
- 12V AC/DC lighting setups
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
- Long lifespan reduces waste and replacement frequency.
Warranty Information
Standard 2 years warranty against manufacturing defects.
Available Now
The LED Globe 3U 9W 12V AC/DC 6500K Daylight is available now for immediate purchase. Ideal for low voltage residential and commercial lighting applications.
