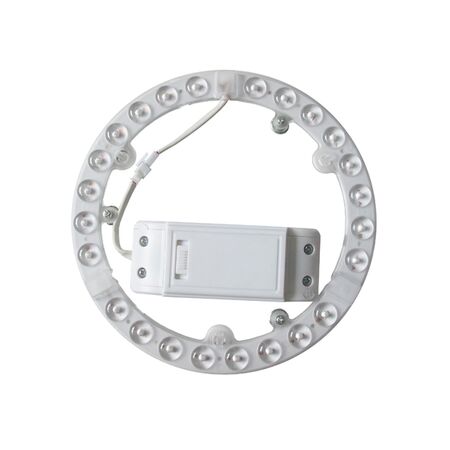

LED Globe Conversion Kit | 24W | Tri-CCT 3000K/4000K/5000K
LED globe conversion kit with 24W power and tri-CCT options (3000K/4000K/5000K)—ideal for commercial lighting. Built for versatility, with a clear diffuser and non-dimmable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Globe Conversion Kit | 24W | Tri-CCT 3000K/4000K/5000K
SKU: CKTRI03
Alternatively Known As: LED Globe Adapter Kit, Tri-Colour LED Conversion Kit, 24W LED Globe Retrofit Kit
Technical Specifications
- Input voltage: 220-240V AC 50Hz
- Wattage: 24W
- Lumens output: 2150lm (3000K), 2400lm (4000K), 2250lm (5000K)
- Beam angle: 120°
- CRI: 80
- LED chips: SMD2835
- Power factor: >0.8
- 2 wire input
- Ambient temperature range: -20 to 45°C
- IP rating: IP20
- Double insulated
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Tri-CCT switch on driver for 3000K, 4000K, and 5000K colour temperatures
- Constant current LED driver included
- Clear PC diffuser with PCB and aluminium heatsink
- Suitable for 2 way switching
- Double insulated design
- Not suitable for dimming
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Commercial lighting applications
- Suitable for use with PIR or Microwave sensors
- Indoor lighting requiring tri-colour temperature options
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan reduces waste and replacement frequency
Warranty Information
2 Years Replacement Warranty.
Available Now
The LED Globe Conversion Kit 24W Tri-CCT is available now for immediate purchase. Ideal for commercial indoor lighting requiring adjustable colour temperatures.
