Trade Discount 25%

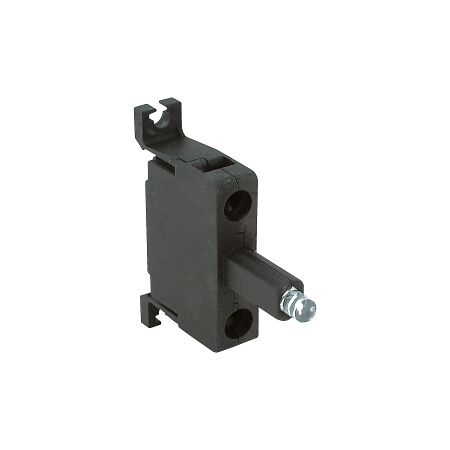

LED Indicator Module 24V AC/DC | Red Lens | Base Mount | 22.5mm by NHP
LED indicator module with 24V AC/DC operation and red lens—ideal for industrial control panels and commercial equipment status indicators. Built for clear visibility, with energy-efficient design and 22.5mm base mount.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Integrated LED Module Base Mount 24V AC DC Red
Brand: NHP
SKU: D7BN3R
Alternatively Known As: LED Indicator Module, 24V LED Lamp, Control Device Indicator
Technical Specifications
- Rated Current: 0.02 A
- Rated Frequency: 50-60 Hz
- Rated Operating Voltage: 24 V
- Voltage Type: AC/DC
- Material: Plastic front ring
- Luminous Intensity: 0.89 cd
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 22.5mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Integrated LED module for 22.5mm operator control devices.
- Rated for 24V AC/DC operation.
- Red lens for clear visibility.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indicators
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Integrated LED Module Base Mount 24V AC DC Red is available now for immediate purchase. Ideal for industrial and commercial applications.
