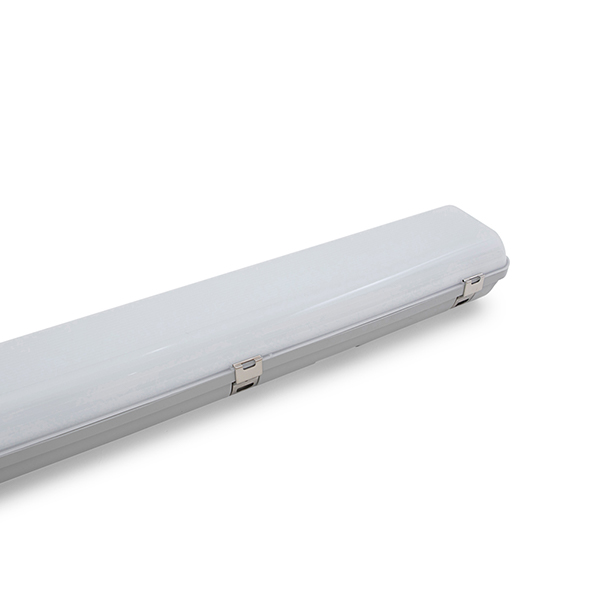

LED IP65 Emergency Batten Light | 600mm | Wireless DALI Control | 142 lm/W Efficiency | by Ektor
The LED IP65 Emergency Batten Light is designed for reliable emergency lighting in commercial and industrial settings. With a 600mm length, wireless DALI control, and an impressive efficiency of up to 142 lm/W, it ensures optimal performance during emergencies. Ideal for both indoor and outdoor applications, this batten light features a maintained emergency mode with a 90-minute duration, making it a perfect choice for safety lighting in escape routes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, IP65 Emergency LED Batten, Wireless Emergency Batten, DALI Emergency Batten Light
Technical Specifications
- Total system efficiency up to 142 lm/W
- Input voltage: 230Vac (216-253Vac range)
- Power factor: 0.95
- Maximum wattage: 20 W for 600mm models
- LED voltage: 24 V for 600mm models
- LED current: 650 mA for 600mm models
- Colour temperature: 4000 K
- Colour rendering index (CRI): >84
- IP rating: IP65
- IK rating: IK08
- Operating temperature: 0 to 40 °C for emergency models
- Driver type: DALI DT6 with wireless IEC62386-104 support
- Dimmable with flicker-free dimming
- Emergency duration: 90 minutes
- Emergency lumen output: 350 lm for 600mm emergency models
- Inbuilt mains rated DALI switch input
- Microwave sensor option with DALI-2 communication
- Dimensions (H x L x W): 70mm x 80mm x 600mm
- Weight: 2.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- High system efficiency up to 142 lm/W
- DALI DT6 LED driver with wireless IEC62386-104 support
- Maintained emergency mode with 90 minutes duration
- Inbuilt mains rated DALI switch input
- Microwave sensor option with DALI-2 sensor communication
- Power factor of 0.95 and standby power as low as 0.3 W
- Colour rendering index (CRI) greater than 84
- 3-step MacAdam ellipse colour consistency
- LED lifetime over 102,000 hours
- Dimmable with flicker-free dimming
- Power monitoring via DALI device type 51
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial emergency lighting
- Outdoor and indoor surface mount lighting
- Emergency escape routes and safety lighting
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS CISPR 15
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS 60598.2.22
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low standby power reduces energy use during non-active periods
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty terms.
Available Now
The Ektor Lynk Umbra 600mm LED IP65 Emergency Batten PRO with wireless is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
