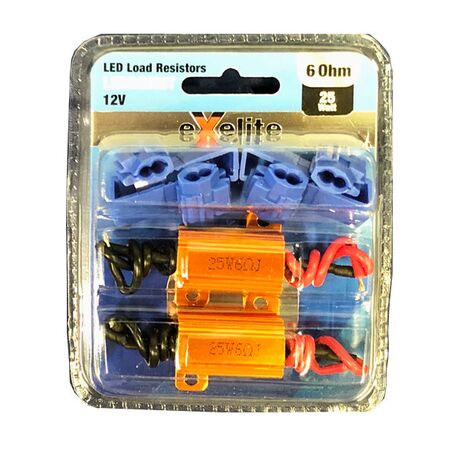

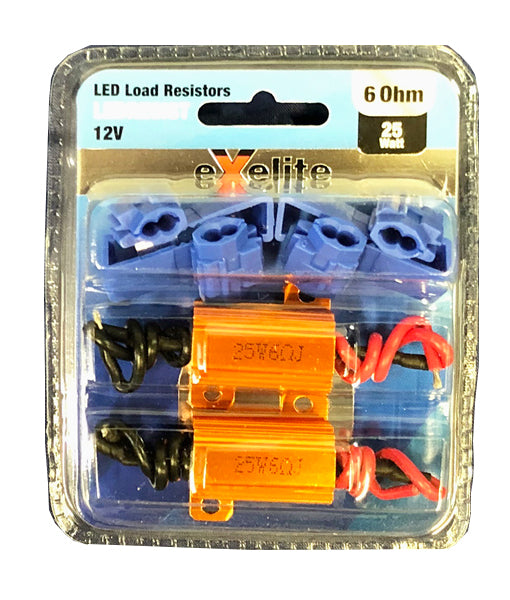

LED Load Resistor 25W Pack of 2 CLA Lighting
CLA Lighting LED load resistors feature 25W rating, aluminium heat sink and 12V operation, pack of 2. Ideal for stopping hyper-flash on vehicle LED lights.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Load Resistor 25 W 60 Ω 12 V, CLA Lighting
Technical Specifications
- Voltage: 12 V
- Power rating: 25 W per resistor
- Resistance: 60 Ω (nominal)
- Pack size: 2 resistors
- Heat sink material: aluminium
- Dimensions (H x L x W): 50mm x 70mm x 15mm
- Weight: 0.2 kg
Key Features
- Mimics incandescent bulb load to prevent hyper‑flash when converting to LEDs
- Each resistor features an aluminium heat sink to dissipate heat
- Simple installation: attach one resistor per lamp circuit
- Suitable for 12 V vehicle lighting systems
Professional Installation Requirements
- Should be installed by a qualified automotive electrician, ensuring mounting to metal surface, avoiding contact with plastics and wiring due to high operating temperature.
Applications
- Aftermarket LED turn signal conversions to prevent hyper‑flashing
- LED tail light installations requiring load simulation
- Any 12 V automotive lighting conversion where correct flash rate is needed
Environmental Benefits
- Made of aluminium, which is highly recyclable
- Helps ensure longevity of LED lighting systems by preventing electrical faults
Warranty Information
Subject to CLA Lighting’s limited warranty. Installation not performed by a licensed electrician, misuse or installation on same circuit as other LED fittings may void warranty. ([clalighting.com.au](https://clalighting.com.au/pages/exterior-lighting-limitations-and-conditions?utm_source=openai))
Available Now
Available through CLA Lighting and authorised Australian distributors.
