Home/Electrical/Lighting/Light Fittings/Strip Lighting/LED Mounting Profile 20x20mm | Aluminium Extruded | Square Opal PMMA Diffuser | Surface Mounted by Domus Lighting

Trade Discount 17%

BLOC-20 SM 20X20MM P/M C/W OPAL SQR DIF & EC

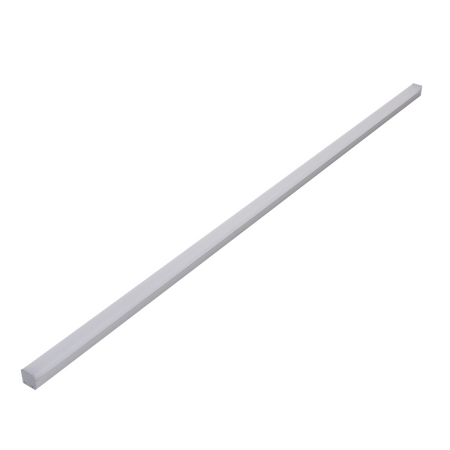

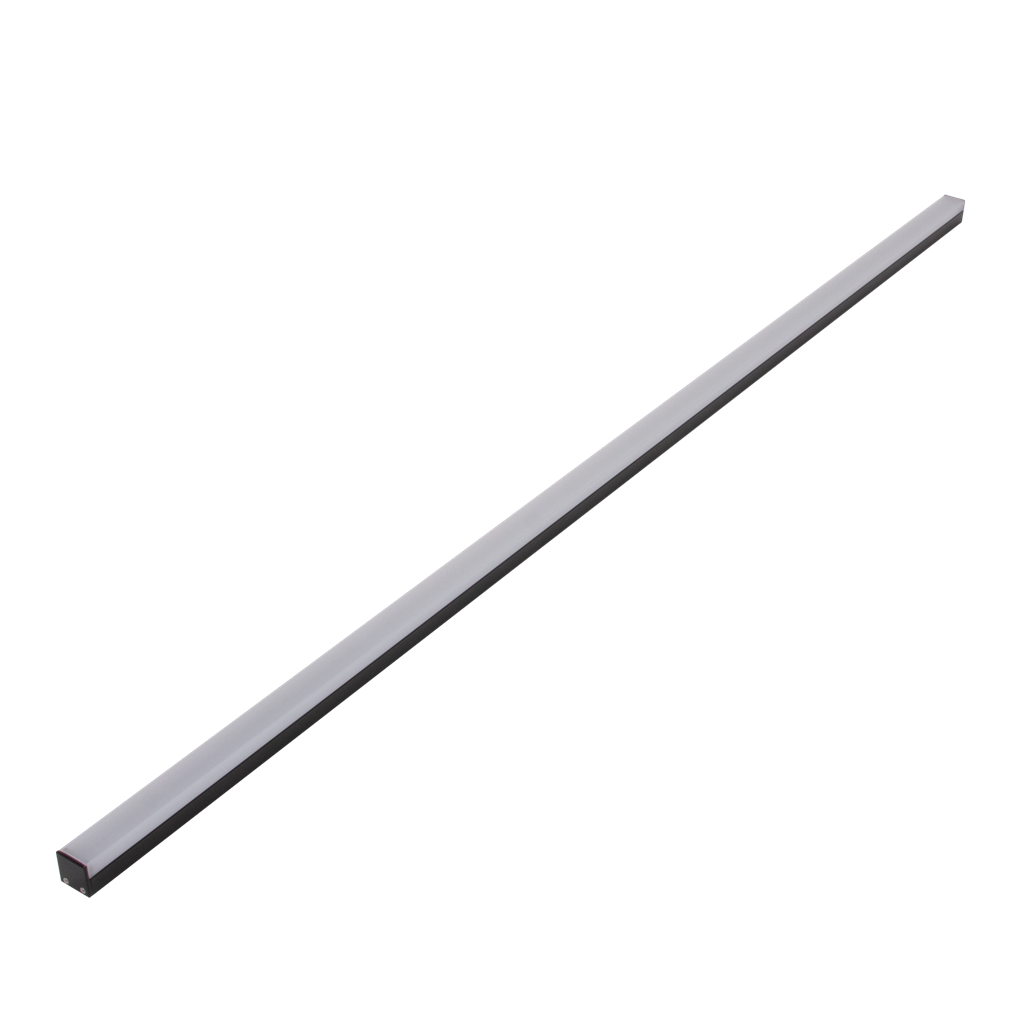

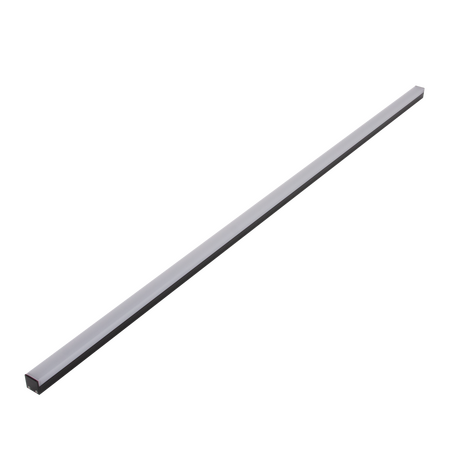

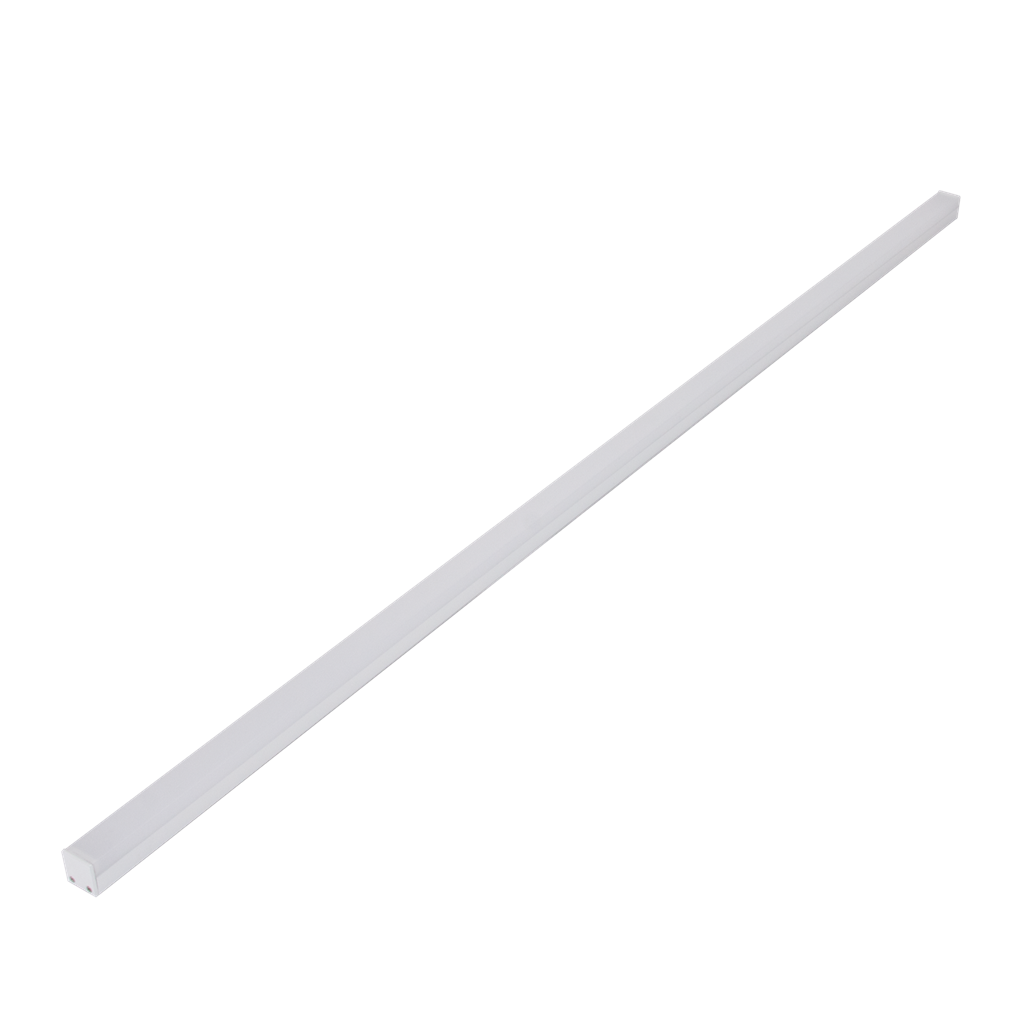

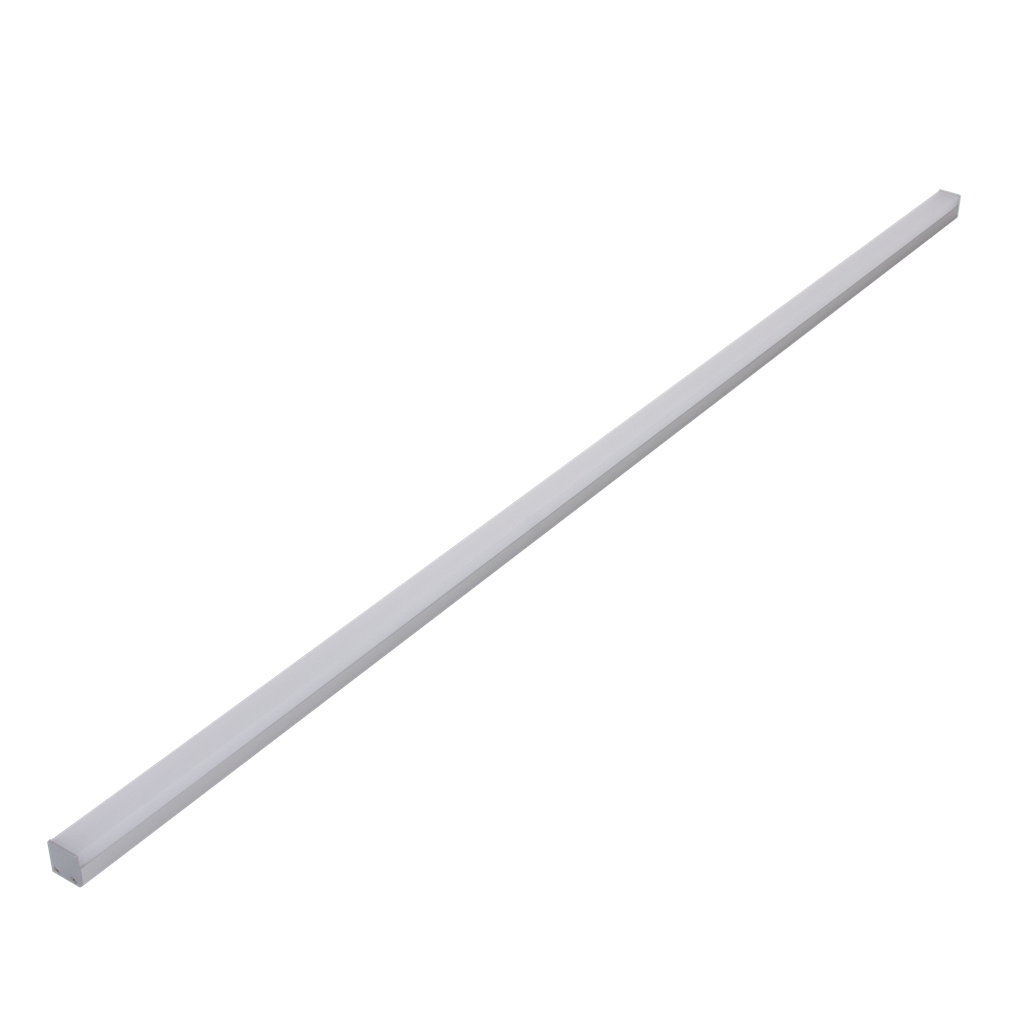

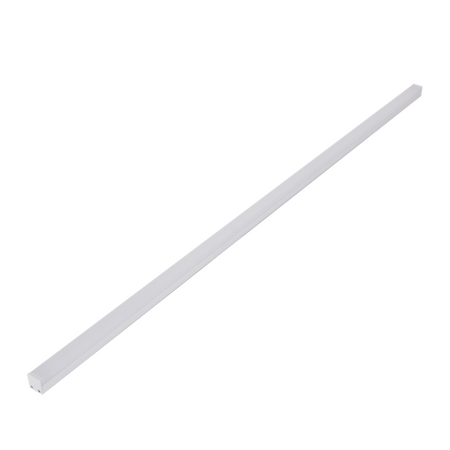

LED Mounting Profile 20x20mm | Aluminium Extruded | Square Opal PMMA Diffuser | Surface Mounted by Domus Lighting

BRAND: Domus Lighting

SKU: 22010

$41.80 List price: $50.60

Free pick up (over 1 meter)

For delivery quote message

30 Days Return Delivery Options

LED mounting profile with a 20x20mm design and square opal PMMA diffuser—ideal for residential and commercial lighting applications. Built for easy installation, this aluminium profile conceals LED strips while protecting them from damage.

Description

Product Name/Title: BLOC-20 SM 20X20MM P/M C/W OPAL SQR DIF & EC

Brand: Domus Lighting

SKU: 22010

Alternatively Known As: LED mounting profile, LED extrusion channel, LED strip light housing, aluminium LED profile with diffuser

Technical Specifications

Material: Aluminium
Diffuser: Square opal PMMA
Maximum Length: 2.5 meters
Width: 19.7 mm
Height: 19.6 mm
Application: Surface mounted or suspended
Dimensions (H x L x W): 20mm x 2500mm x 20mm
Weight: 0.3 kg

Key Features

Aluminium extruded mounting profile
Square opal PMMA diffuser for discrete lighting
Conceals LED strip lighting and keeps it linear
Protects LEDs from foreign objects and vapours
Suitable for surface mounted or suspended installation

Professional Installation Requirements

Professional installation by a qualified electrician or lighting technician is recommended to ensure proper mounting and electrical safety.

Applications

Lounge rooms
Dining areas
Bathrooms
Storage areas
Shelving
Architectural lighting applications

Standards & Compliance

Complies with AS/NZS 60598 for safety and performance standards in lighting products

Environmental Benefits

Protects LED strips extending their lifespan and reducing waste
Enables efficient LED lighting solutions that consume less energy

Warranty Information

Standard manufacturer warranty applies. Please refer to Domus Lighting warranty terms.

Available Now

The Domus Lighting BLOC-20 SM 20X20MM LED mounting profile system is available now for immediate purchase. Ideal for residential and commercial architectural lighting applications.

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
