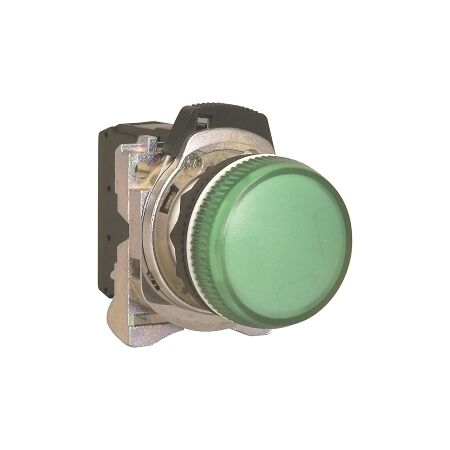

LED Pilot Light 22.5mm | 240V AC | IP65/IP66 Green Lens by NHP
LED pilot light with 22.5mm round design and 240V AC operation—ideal for industrial control panels and commercial equipment. Built for durability, with IP65/IP66 protection and energy-efficient green lens.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 240V AC Green Lens
Brand: NHP
SKU: D7MP3MN7G
Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light
Technical Specifications
- Voltage Type: AC
- Rated Current: 0.02 A
- Rated Frequency: 50-60 Hz
- Lamp Power: 1 W
- Operating Voltage: 240 V
- Degree of Protection: IP65/IP66
- Material: Metal front ring
- Luminous Intensity: 0.01 cd
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5mm round design with a green lens for clear visibility.
- IP65/IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation with low power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 240V AC Green Lens is available now for immediate purchase. Ideal for industrial and commercial applications.
