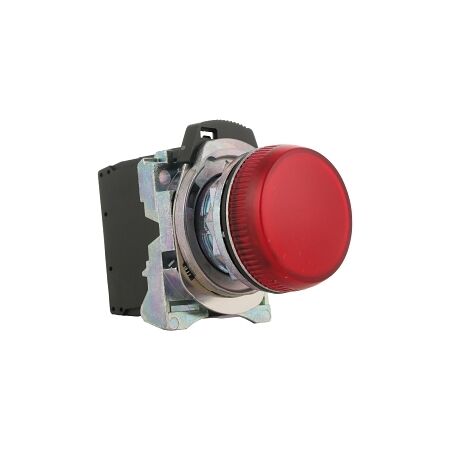

LED Pilot Light 22.5mm | 240V AC | IP65/IP66 | Red Lens by NHP
LED pilot light with 22.5mm round design and durable metal front ring—ideal for industrial and commercial control panels. Operates at 240V AC with low power consumption, offering IP65/IP66 protection for reliable visual indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 240V AC Red Lens
Brand: NHP
SKU: D7MP4MN7R
Alternatively Known As: Indicator Light, LED Pilot Light, Control Panel Light
Technical Specifications
- Voltage Type: AC
- Rated Current: 0.02 A
- Rated Frequency: 50-60 Hz
- Lamp Power: 1 W
- Operating Voltage: 240 V
- Colour Lens: Red
- Degree of Protection: IP65/IP66
- Material Front Ring: Metal
- With Light Source: Yes
- Construction Type Lens: Round
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Luminous Intensity: 0.01 cd
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5mm round design with a durable metal front ring.
- IP65/IP66 rated for protection against dust and water.
- Operates at 240V AC with a low power consumption of 1W.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment indicators
- Commercial: Control panels and signaling
- General: Any application requiring visual indication of power status
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pilot Light 22.5 mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable visual indication.
