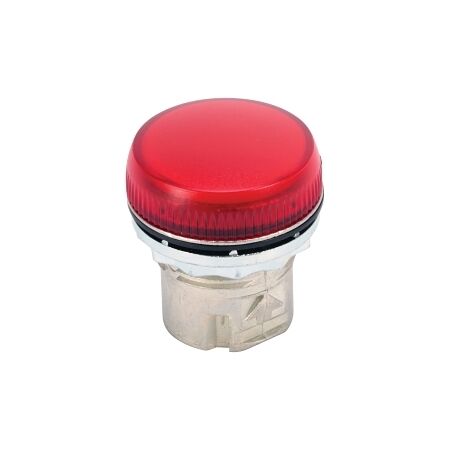

LED Pilot Light 22.5mm | 24V AC/DC | IP66 Metal Front | Red by NHP
LED pilot light with 22.5mm round design and durable metal front ring—ideal for industrial control panels and commercial equipment status indication. Built for reliability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800F Pilot Light 22.5mm Complete Metal LED Module 24V AC DC Red
Brand: NHP
SKU: 800FMP4MN3R
Alternatively Known As: 800F LED Pilot Light, 22.5mm Indicator Light, Red LED Module
Technical Specifications
- Voltage Type: AC/DC
- Rated Current: 0.03 A
- Type of Electric Connection: Screw connection
- Number of Indicator Lights: 1
- Rated Frequency: 50-60 Hz
- Operating Voltage: 24 V
- Colour Lens: Red
- Degree of Protection: IP66
- Material Front Ring: Metal
- With Light Source: Yes
- Construction Type Lens: Round
- With Front Ring: Yes
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Luminous Intensity: 0.01 cd
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.2 kg
Key Features
- 22.5mm round design with a durable metal front ring.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Long-lasting LED technology reduces waste and energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 800F Pilot Light 22.5mm Complete Metal LED Module 24V AC DC Red is available now for immediate purchase. Ideal for industrial and commercial applications.
