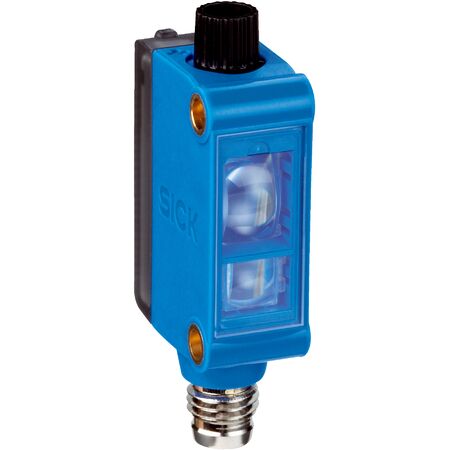

LED Proximity Sensor | Small Housing Design | IP67 Rated | 10 kHz Switching Frequency | by SICK
The LED Proximity Sensor is designed for industrial automation, featuring a compact housing and a sensing distance of up to 12.5 mm. With a high switching frequency of 10 kHz and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and robotics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 10 kHz
- Response time: 50 µs
- Sensing distance: ≤ 12.5 mm with ±3 mm tolerance
- Light source: White LED
- Switching output: PNP and NPN
- Output current max: 50 mA
- Protection class: III
- Enclosure rating: IP67
- Housing material: ABS
- Optics material: PMMA
- Connection type: Male M8, 4-pin connector
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design for compact installation
- White LED light source with round light spot of 2 mm diameter
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Potentiometer adjustment for sensitivity
- PNP and NPN switching outputs with light/dark switching mode
- High switching frequency of 10 kHz and fast response time of 50 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Green and yellow LED indicators for power and output status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery sensing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing reduces waste through long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-MB31191P sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
