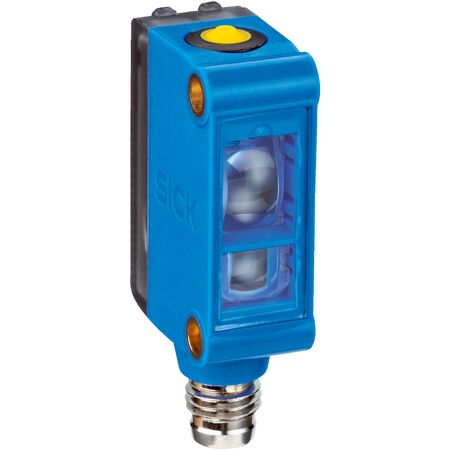

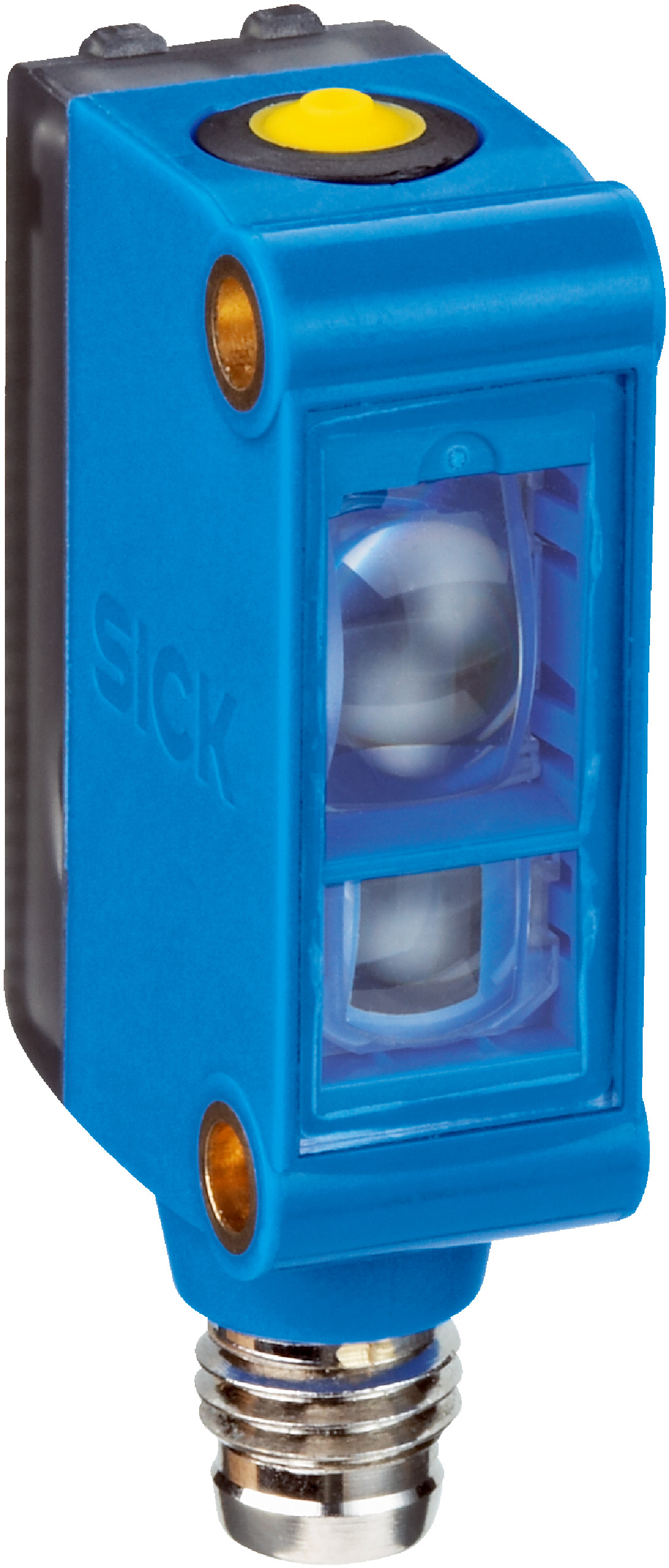

LED Proximity Sensor | Small Housing Design | NPN Output | IP67 Rated | by SICK
The LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a small housing design and NPN output for efficient performance. With an IP67 rating for dust and water resistance, this sensor is perfect for manufacturing lines and quality control systems, ensuring reliable operation in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: NPN, HIGH approx. supply voltage, LOW ≤ 2 V
- Output current max: 50 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: Male M8, 4-pin connector
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Indicators: Green LED for power, yellow LED for output status
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design measuring 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- White LED light source with vertical light spot direction
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Teach-in button for easy adjustment with 2-point teach-in modes
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems
- Packaging machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce waste through long product life
- IP67 rating ensures protection against environmental contaminants, reducing failure rates
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-MN11181P sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
