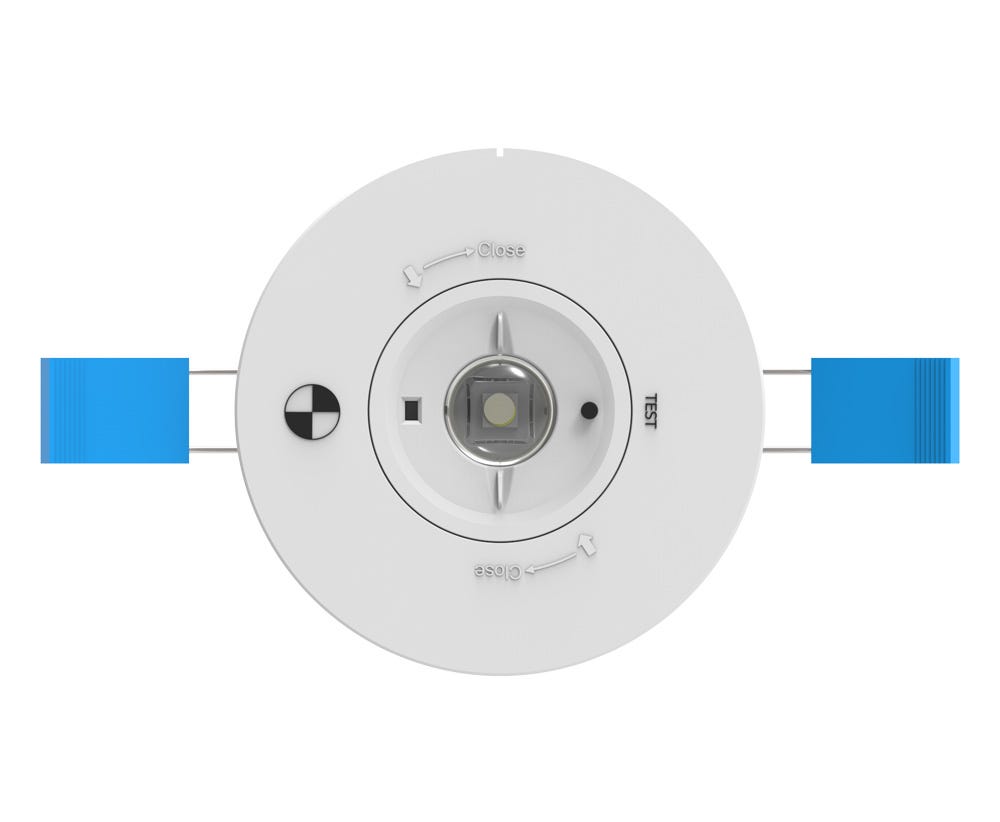

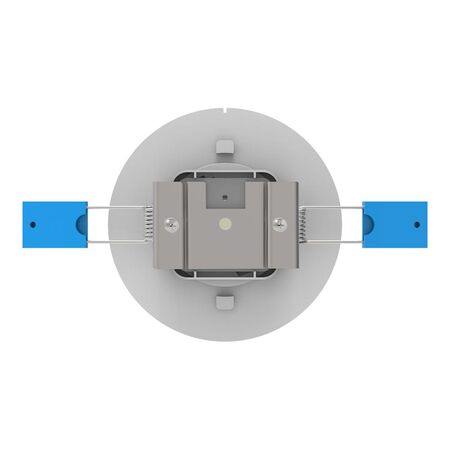

LED Recessed Emergency Luminaire Gen2 | LiFePO4 Battery | 330 Lumens | D63 Photometric Classification | @EA of 1 | by Cabac
The LED Recessed Emergency Luminaire Gen2 is designed for reliable emergency lighting in commercial spaces, featuring a LiFePO4 battery with an integrated management system for extended life. With a light output of 330 lumens for open areas and a superior D63 photometric classification, this luminaire ensures safety and compliance in corridors and public facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Recessed Emergency Luminaire Gen2 | LiFePO4 Battery | 330 Lumens | D63 Photometric Classification | @EA of 1 | by Cabac
Brand: Cabac
SKU: SATLIG2
Alternatively Known As: Recessed Emergency Light, Emergency LED Downlight, Emergency Exit Luminaire
Technical Specifications
- Battery Type: LiFePO4 with integrated Battery Management System
- Photometric Classification: D63
- Light Output: 330 lumens (Open Areas), 276 lumens (Corridors)

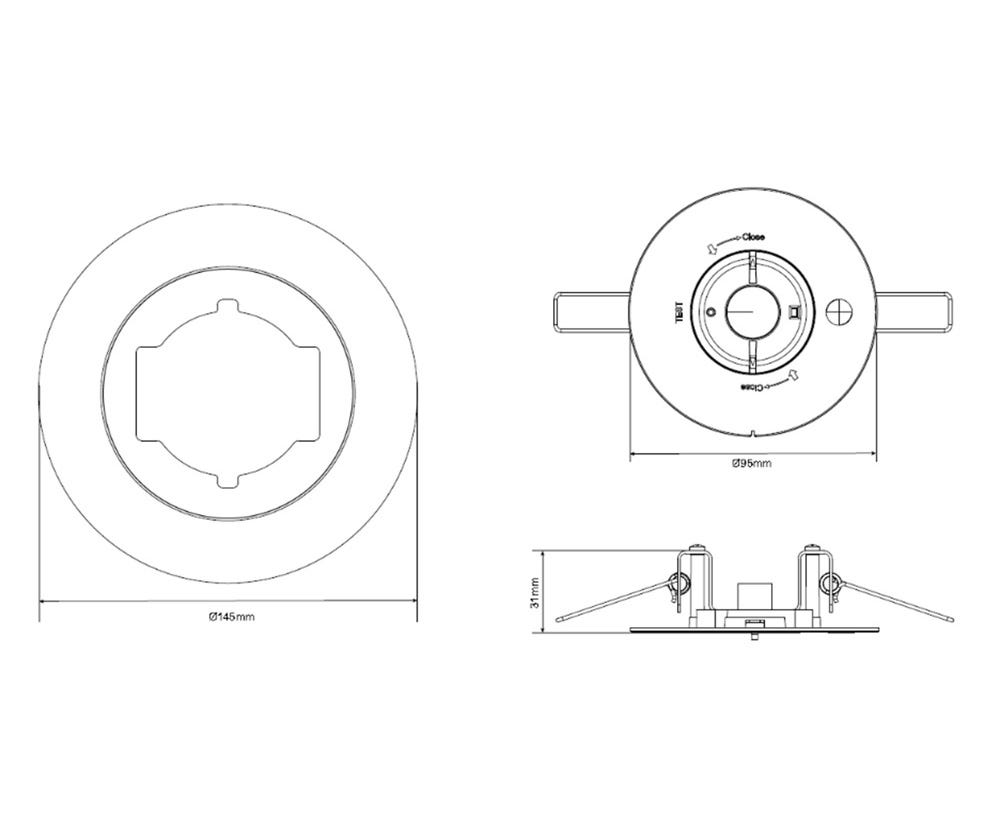

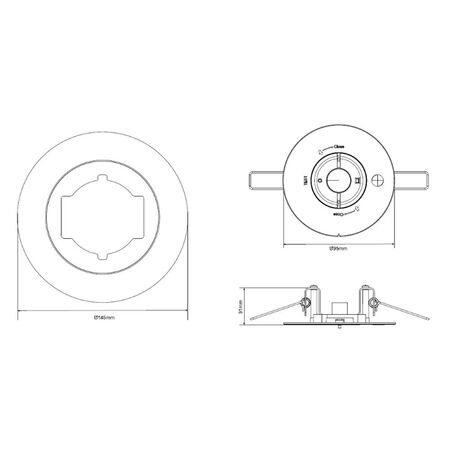

- Disc Sizes: Large 144mm, Small 95mm
- Non-maintained emergency luminaire
- Low standby power consumption

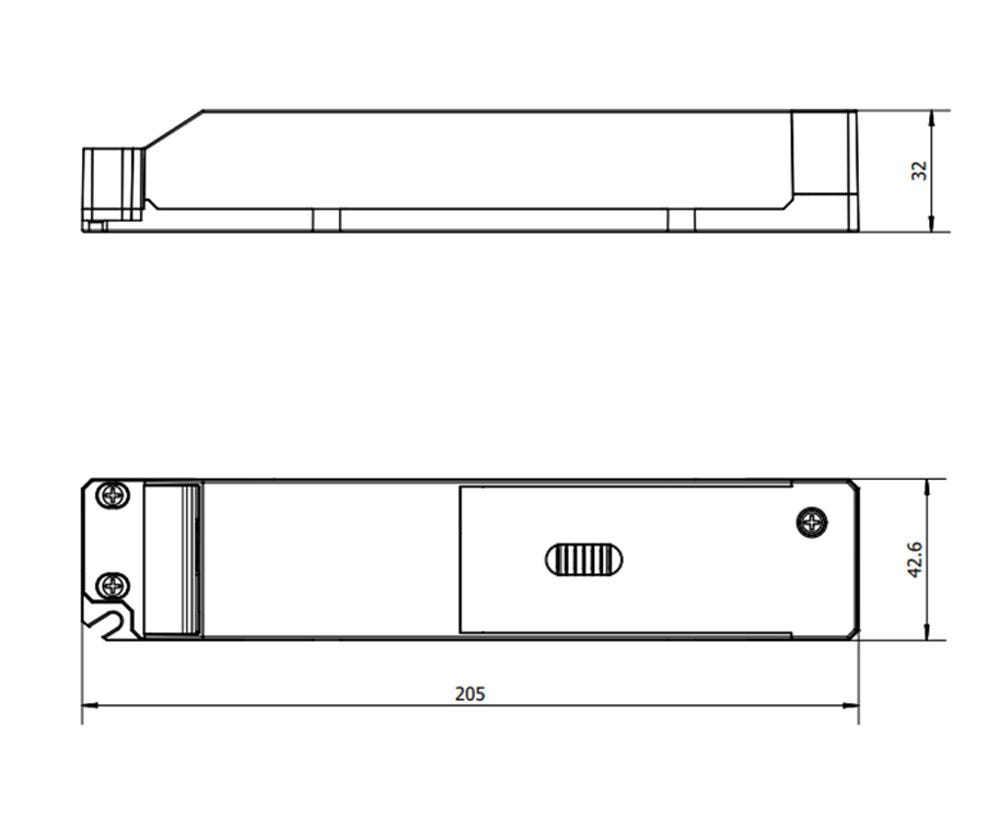

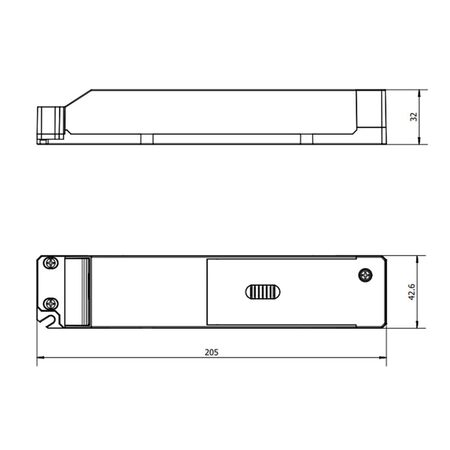

- Dimensions (H x L x W): 60mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- LiFePO4 battery with integrated battery management system to maximize battery life
- Superior photometric classification (D63)
- Two optical lens options for Open Areas (330 Lm) and Corridors (276 Lm)

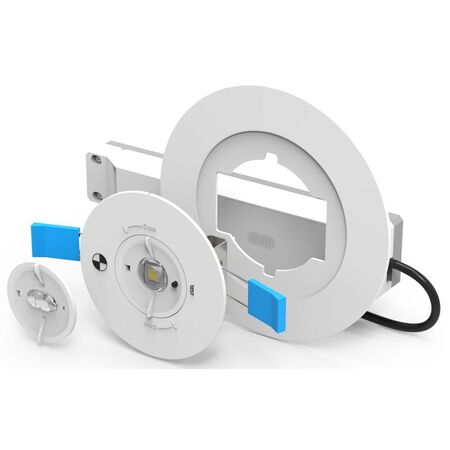

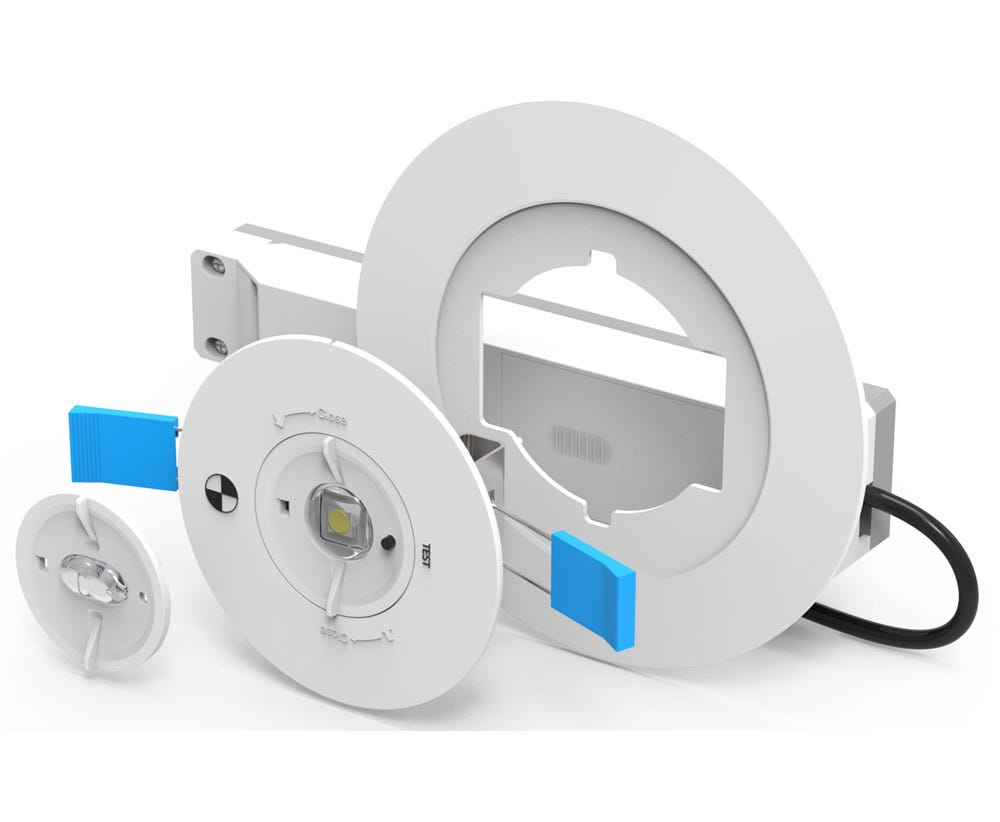

- Versatile 2-piece disc with large (144mm) and small disc (95mm)
- Designed and manufactured in accordance with AS/NZS 2293
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety and emergency lighting standards.
Applications
- Emergency lighting in commercial buildings
- Emergency illumination in corridors and open areas
- Safety lighting for public and private facilities
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy usage
- Long-life LED technology minimizes waste and replacement frequency
- LiFePO4 battery is more environmentally friendly and safer than traditional batteries
Warranty Information
Standard manufacturer warranty applies, typically 3 years.
Available Now
The Cabac LED Recessed Emergency Luminaire Gen2 is available for immediate purchase, ideal for emergency lighting in commercial and public buildings.
