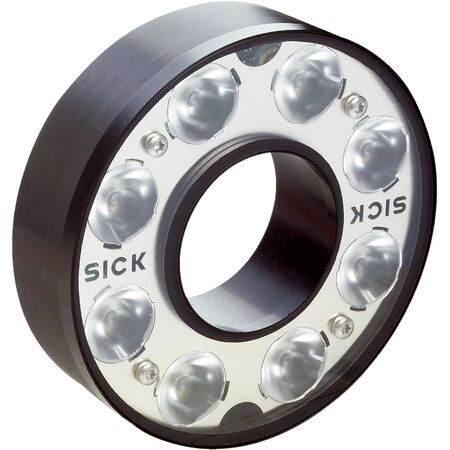

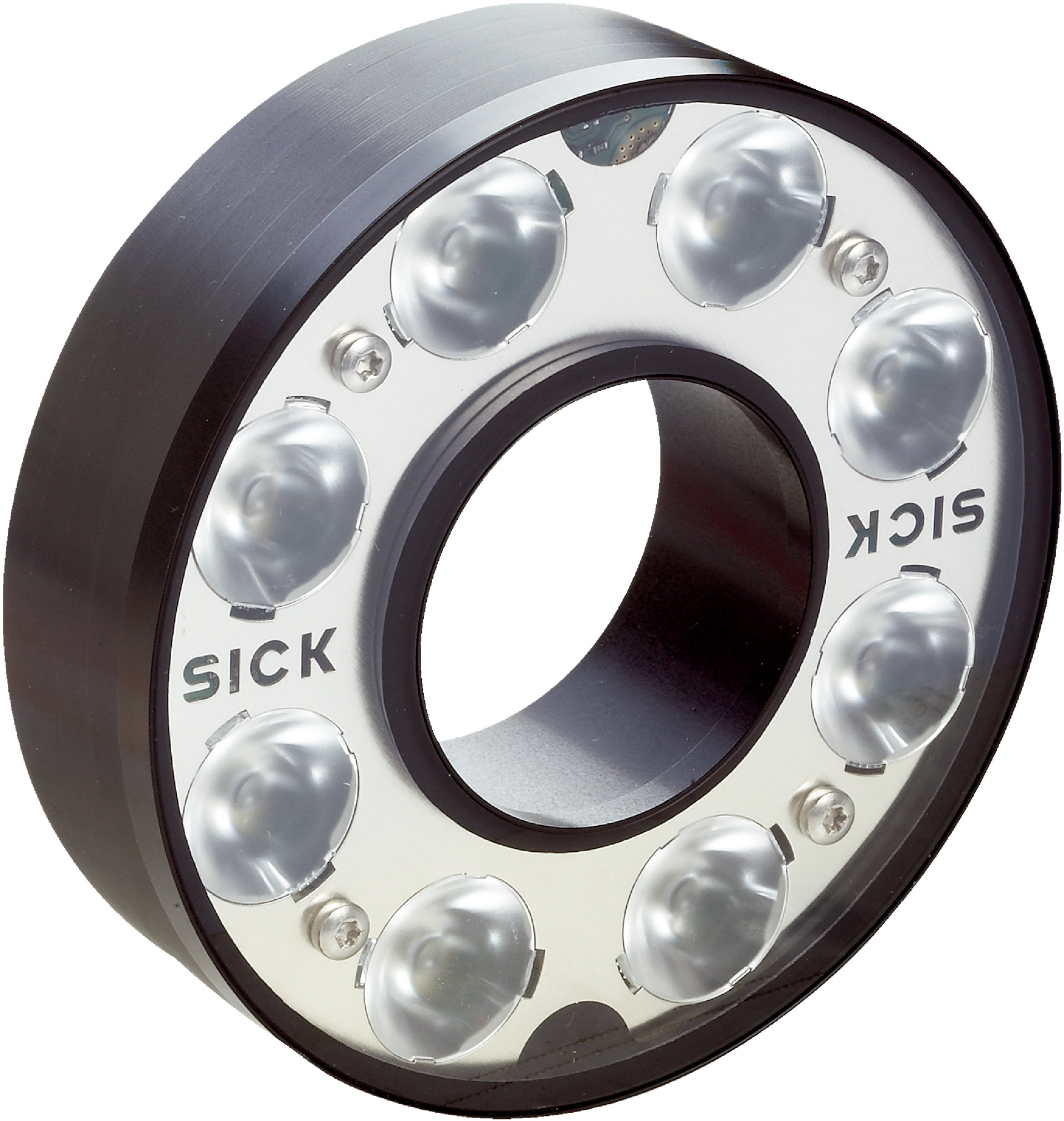

LED Ring Light Reflector | Bright Field Illumination | Red Lighting | by SICK
The LED Ring Light Reflector ICL280-F222 offers bright field illumination with a red lighting color, perfect for industrial automation and machine vision systems. Designed for optimal performance in lighting distances from 200 mm to 1.1 m, this reflector is ideal for inspection and quality control applications, ensuring reliable and efficient lighting for sensors and cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Ring Light Reflector | Bright Field Illumination | Red Lighting | by SICK
Brand: SICK
SKU: 1052472
Alternatively Known As: LED Ring Light Reflector, Bright Field LED Illuminator, SICK ICL280 Reflector
Technical Specifications
- Product segment: Reflectors and optics
- Product type: Illuminations
- Product version: LED
- Lighting color: Red
- Lighting distance: 200 mm to 1.1 m
- LED class: Risk group 1 (low risk, IEC62471: 2006)
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: –25 °C to +70 °C
- Certifications: EU declaration of conformity, ACMA declaration of conformity, China RoHS
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Ring lighting with bright field illumination
- Red lighting color
- LED class: Risk group 1 (low risk, IEC62471: 2006)
- Lighting distance range from 200 mm to 1.1 m
- Ambient operating temperature from 0 °C to +40 °C
- Storage temperature from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial lighting and electrical safety standards.
Applications
- Industrial automation lighting
- Machine vision systems
- Inspection and quality control
- Bright field illumination for sensors and cameras
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption LED technology reduces energy use
- Long LED lifespan minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK ICL280-F222 LED Ring Lighting Reflector is available for immediate purchase, ideal for industrial and machine vision lighting applications.
