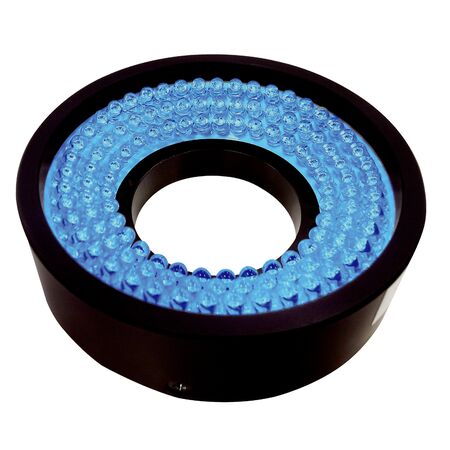

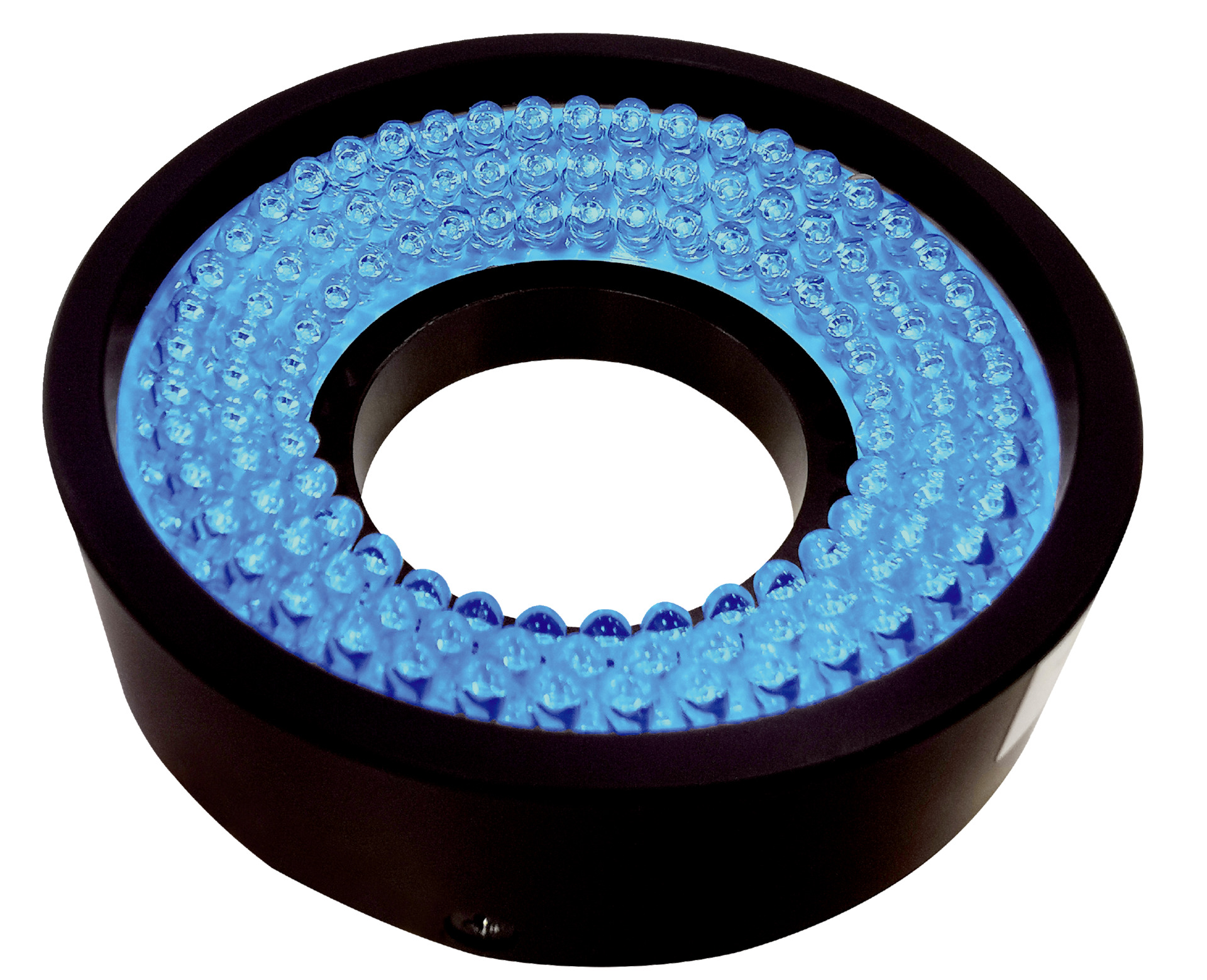

LED Ring Light VLR-247RL3911 | 470 nm Blue Light | Compact Design | by SICK
The LED Ring Light VLR-247RL3911 features a 470 nm blue light source, perfect for industrial automation and machine vision systems. With a low-risk LED class and compact design, it ensures optimal illumination for inspection and quality control. Designed for reliable performance in ambient temperatures from 0°C to +40°C, this ring light is an essential tool for enhancing visibility in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Ring Light VLR-247RL3911 | 470 nm Blue Light | Compact Design | by SICK
Brand: SICK
SKU: 2134620
Alternatively Known As: LED Ring Light, Blue LED Illuminator, Machine Vision Ring Light
Technical Specifications
- Light source: LED, blue, 470 nm
- LED class: Risk group 1 (low risk, IEC62471:2008)
- Supply voltage: 24 V DC
- Power consumption: 0.23 A
- Connections: Connector M12, 4-pin, cable length 0.5 m
- Ambient operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +60°C
- Dimensions (H x L x W): 20mm x 80mm x 80mm
- Weight: 0.2 kg
Key Features
- LED blue light source with 470 nm wavelength
- Low risk LED class (Risk group 1, IEC62471:2008)
- Compact ring light design
- Connector M12, 4-pin with 0.5 m cable
- Operating temperature range 0°C to +40°C
- Storage temperature range -20°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connection and safety compliance.
Applications
- Industrial automation lighting
- Machine vision systems
- Illumination for inspection and quality control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The SICK VLR-247RL3911 LED Ring Light Reflector is available for immediate purchase, ideal for industrial and machine vision lighting applications.
