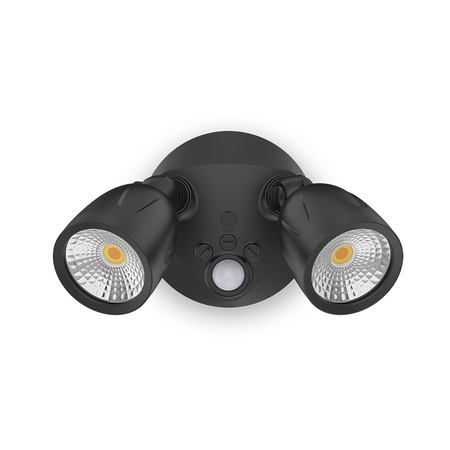

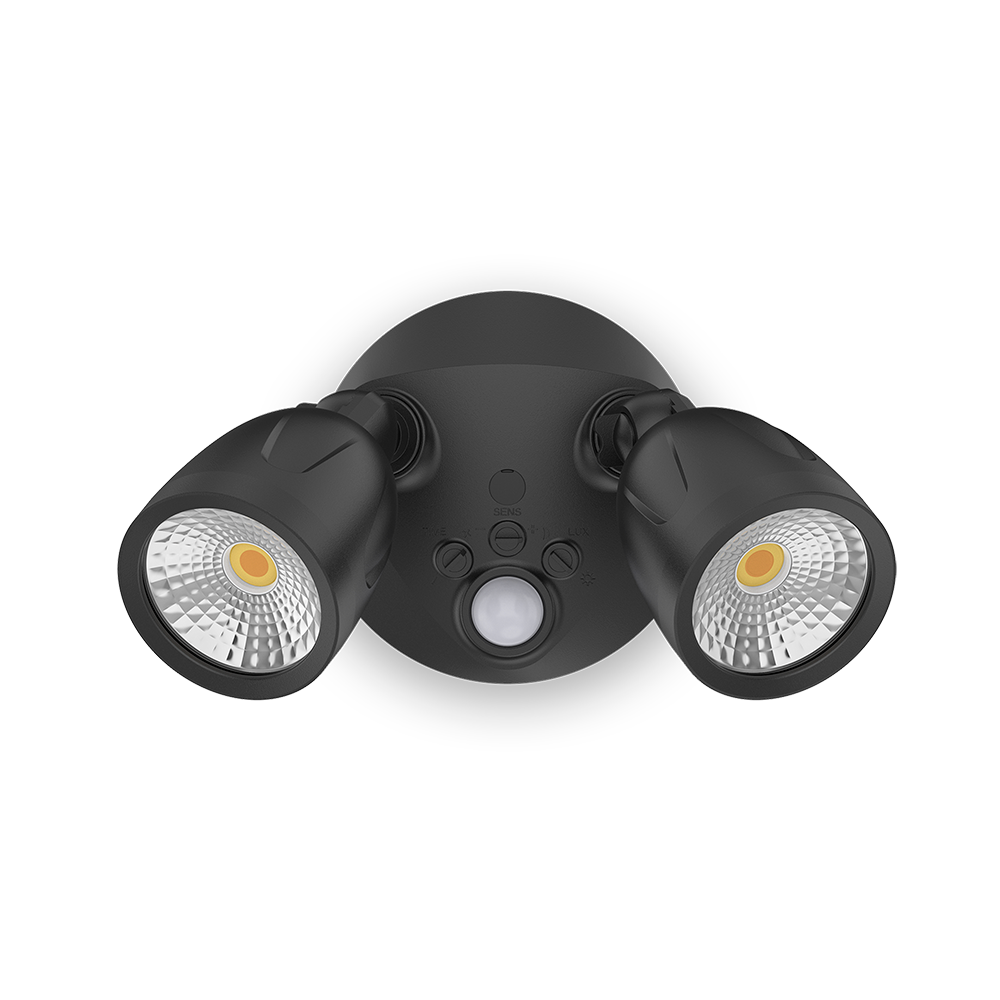

12W LED Security Spotlight | IP65 Weather Resistant | PIR Sensor | Black | by atom
The 12W LED Security Spotlight is designed for outdoor security lighting, featuring an IP65 rating for weather resistance and an integrated PIR sensor with an 8m detection range. Ideal for residential and commercial applications, this spotlight offers a high LED lifetime of 108,000 hours and a durable ABS body with a glass diffuser, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Security Floodlight with PIR Sensor, Outdoor Motion Sensor Spotlight, IP65 LED Security Light, Atom Hawk LED Floodlight
Technical Specifications
- Total System Efficiency: 110 lm/W
- IP Rating: IP65
- Body Material: ABS
- Diffuser Material: Glass
- Installation Type: Surface mount
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 9 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Current: 0.06 A
- Colour Rendering Index (CRI): >80
- LED Type: COB
- CCT Configuration: Tri-CCT (3000K, 4000K, 5000K)
- Macadam Steps: 6-step MacAdam Ellipse
- Beam Angle: 90°
- LED Lifetime: 108,000 hours (L70B10)
- Driver Type: Fixed output, integrated, constant current
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Sensor Type: PIR
- Detection Range: 8 m
- Detection Angle: 120°
- Switched Output Rating: 300 W
- Lux Adjustment: Yes
- Manual Override: Yes
- Dusk Mode: Yes
- Adjustable Detection Area / Sensitivity: Yes
- Dimensions (H x L x W): 120mm x 180mm x 150mm
- Weight: 1.2 kg
Key Features
- IP65 rated for weather resistance and outdoor use
- Integrated PIR sensor with 8m detection range and 120° detection angle
- Tri-CCT configuration offering Warm White (3000K), Cool White (4000K), and Daylight (5000K)
- High LED lifetime of 108,000 hours (L70B10 rating)
- Fixed output constant current driver included
- Manual override and lux adjustment features
- Surface mount installation with durable ABS body and glass diffuser
- Non-dimmable LED with >80 CRI for good color rendering
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct wiring, sensor setup, and compliance with electrical safety standards.
Applications
- Outdoor security lighting for residential properties
- Commercial and industrial perimeter lighting
- Pathway and entrance illumination
- Areas requiring motion-activated lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General requirements and tests
- AS/NZS 60598.2.1 – Particular requirements for fixed general purpose luminaires
- AS/NZS 61347.1 – Lamp control gear General and safety requirements
- AS/NZS 61347.2.13 – Particular requirements for d.c. or a.c. supplied electronic control gear for LED modules
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
Environmental Benefits
- High system efficiency of 110 lm/W reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Non-toxic materials and recyclable ABS housing
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Hawk 12W Single LED Security Spotlight with PIR Sensor by atom is available for immediate purchase, ideal for outdoor security and perimeter lighting applications.
