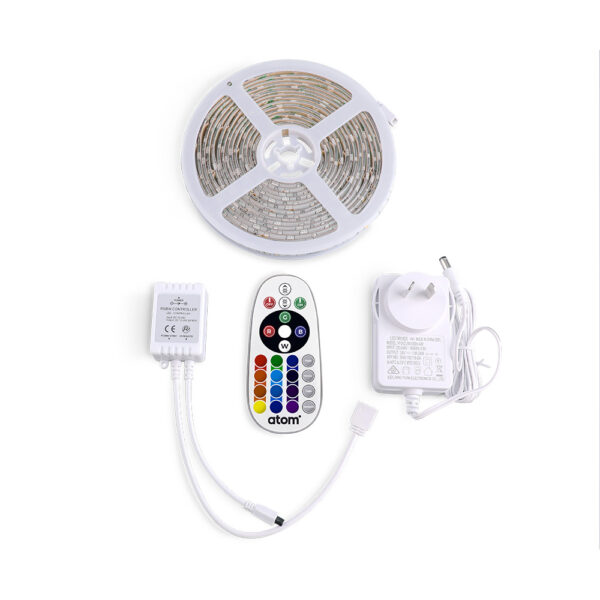

5m 4.8W/m 24V LED Strip Kit | IP54 Rated | RGBW Configuration | 1050 Lumens | by atom
The 5m 4.8W/m 24V LED Strip Kit is perfect for both residential and commercial lighting, featuring an IP54 rating for dust and water protection. With a warm white RGBW configuration and a luminaire output of 1050 lumens, this energy-efficient strip is designed for long-lasting performance, making it ideal for accent and ambient lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Tape Light, LED Ribbon Light, LED Strip Light, Flexible LED Light Strip
Technical Specifications
- IP Rating: IP54
- Working Temperature Range: up to 40°C
- Input Frequency: 50 Hz
- Maximum Wattage: 36 W
- Watts Per Meter: 4.8 W/m
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.5 A
- LED Voltage: 24 V
- LEDs per Meter: 60
- Colour Temperature: Warm White with RGBW configuration
- Lumens per Meter: 210 lm/m
- Luminaire Lumens: 1050 lm
- Driver Type: Fixed output, constant current 1000 mA
- Driver Included: Yes
- Flex & Plug Length: 1500 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Product Design Life: 10 years at 12 hours daily use
- Dimensions (H x L x W): 5mm x 5000mm x 10mm
- Weight: 0.5 kg
Key Features
- IP54 rated for protection against dust and water splashes
- Fixed output driver included with re-wireable flex and plug
- RGBW CCT configuration with 60 LEDs per meter
- Constant current driver mode with 1000 mA current
- Luminaire lumens output of 1050 lm
- Operating temperature up to 40°C
- Designed for 10 years product life with 12 hours daily use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential lighting: accent and ambient lighting
- Commercial lighting: display and signage illumination
- Outdoor and indoor decorative lighting with IP54 protection
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 61347 – Lamp Control Gear
- AS/NZS 60598.1 – General requirements and tests
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product life reduces waste and replacement frequency
- Low heat emission contributes to safer and sustainable use
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users.
Available Now
The atom 5m 4.8W/m 24V LED Strip Kit IP54 Warm White is available now for immediate purchase. Ideal for residential and commercial decorative lighting applications.
