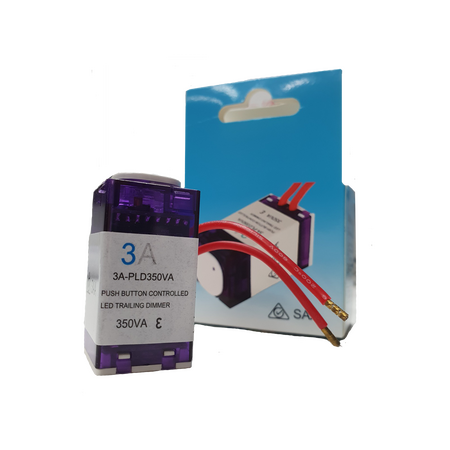

LED Trailing Dimmer 350VA | Push Button | 2-Wire
LED trailing dimmer with 350VA power rating and push button control—ideal for dimmable LED lighting. Built for compatibility with HPM and Clipsal wall plates, featuring over-current, over-voltage, and over-temperature protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LED Trailing Dimmer 350VA | Push Button | 2-Wire
SKU: 3A-PLD350VA
Alternatively Known As: LED trailing edge dimmer, push button dimmer switch, 2-wire LED dimmer, 350VA dimmer switch
Technical Specifications
- Power Supply Voltage: 230-240Va.c. 50Hz
- Power Rating: 350W max.
- Control Type: Push button with long press and quick tap functions
- Compatibility: Dimmable LED, incandescent, 240V halogen, LV halogen with electronic transformer
- Protection: Over current, over voltage, over temperature
- Restart Behavior: Restarts OFF after power loss
- Programmable minimum brightness
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.2 kg
Key Features
- ON/OFF switch integrated with dimmer, ideal for dimmable LED lighting
- Compatible with dimmable LED, incandescent, 240V halogen, and LV halogen electronic transformers
- Push button control with long press to adjust brightness and quick tap to toggle on/off at last brightness
- Rugged protection against over current, over voltage, and over temperature
- Restarts OFF after power loss
- Programmable minimum brightness
- Includes buttons compatible with both HPM and Clipsal wall plates
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential lighting control for dimmable LED, incandescent, 240V halogen, and LV halogen with electronic transformer
- Suitable for use with HPM and Clipsal wall plates
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings by allowing precise dimming of LED and other compatible lighting
- Reduces electricity consumption and extends the lifespan of LED and halogen lamps
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The 3A Push Button LED Trailing Dimmer 350VA 2-Wire is available now for immediate purchase. Ideal for residential lighting control applications.
