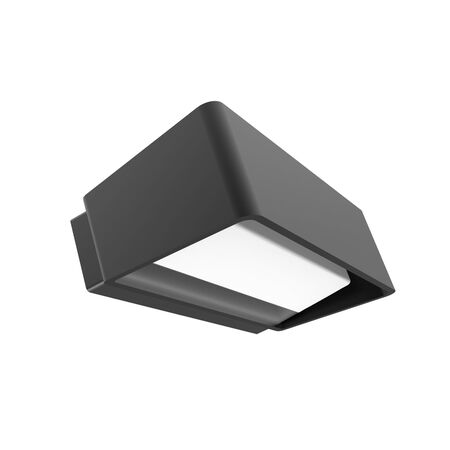

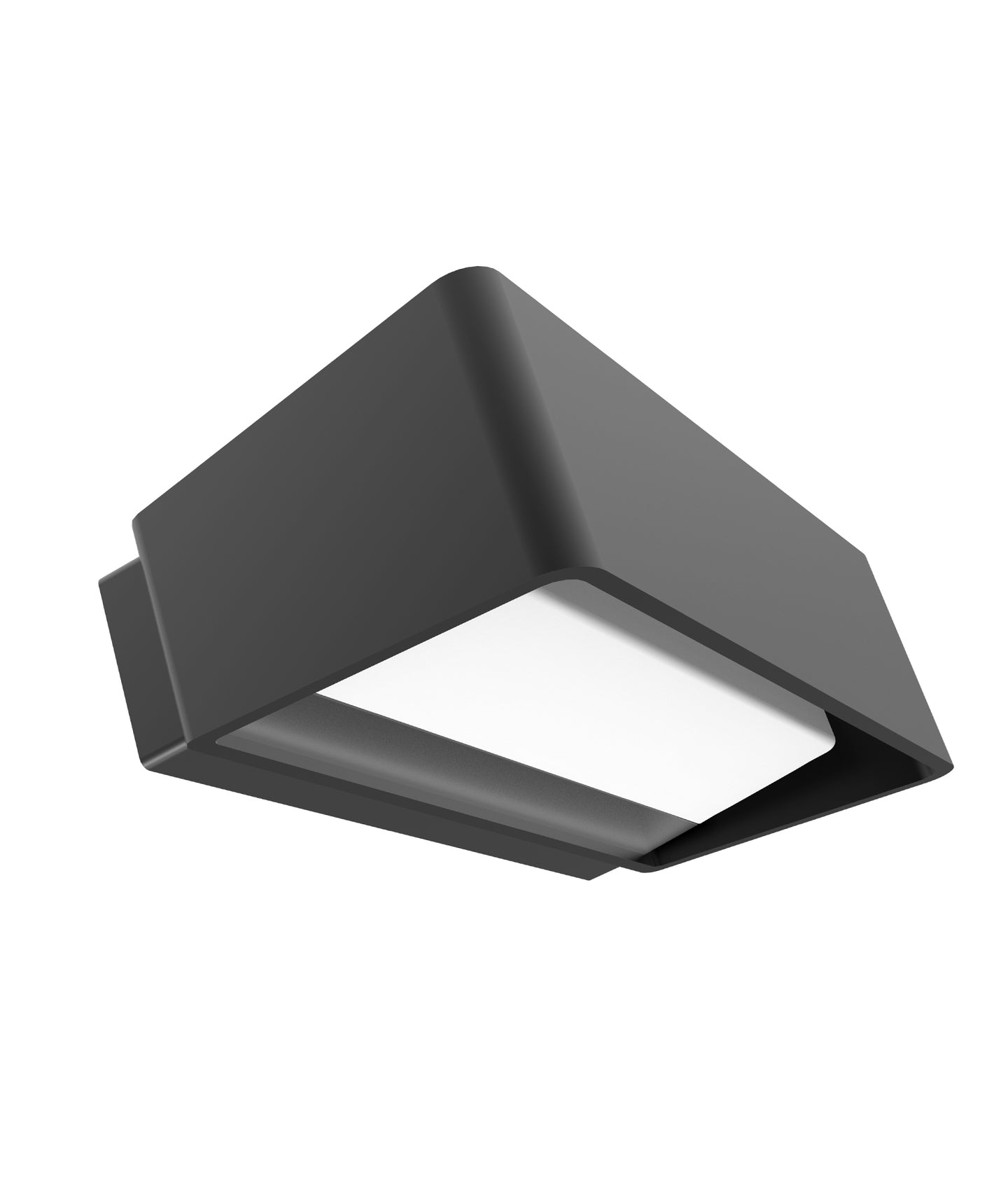

LED Tri-CCT Exterior Surface Mounted Up/Down Wall Lights | IP65 Rated | 13W Power | 304° Beam Angle | by CLA Lighting

BRAND: CLA Lighting
SKU: TOPATRI1
$154.00 List price: $186.40
+ −
30 Days Return Delivery Options
LED Tri-CCT Exterior Surface Mounted Up/Down Wall Lights are perfect for illuminating outdoor spaces with selectable color temperatures of 3000K, 4000K, and 6500K. Designed for residential and commercial use, these lights feature a durable IP65 rating for dust and water resistance, making them ideal for pathways, gardens, and building exteriors. With a powerful 13W output and 304° beam angle, they ensure optimal lighting performance.

Product Name/Title: LED Tri-CCT Exterior Surface Mounted Up/Down Wall Lights | IP65 Rated | 13W Power | 304° Beam Angle | by CLA Lighting

Brand: CLA Lighting

SKU: TOPATRI1

Alternatively Known As: Tri-CCT LED Wall Light, Exterior Up Down LED Wall Light, IP65 Outdoor Wall Light, Surface Mounted LED Wall Light

Technical Specifications
  • Power Wattage: 13W
  • Input Voltage: 100-240V AC 50/60Hz
  • LED Chips: 24pcs SMD2835
  • Colour Temperatures: 3000K / 4000K / 6500K selectable
  • Lumens Output: 678lm / 796lm / 776lm
  • Beam Angle: 304 degrees
  • Power Factor: >0.8
  • CRI: >80
  • Ambient Temperature Range: -20 to 50°C
  • IP Rating: IP65
  • Not suitable for dimming
  • Suitable for 2-way switching

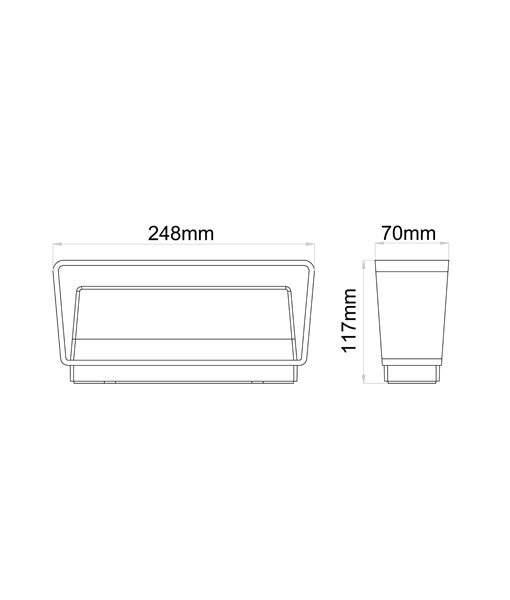

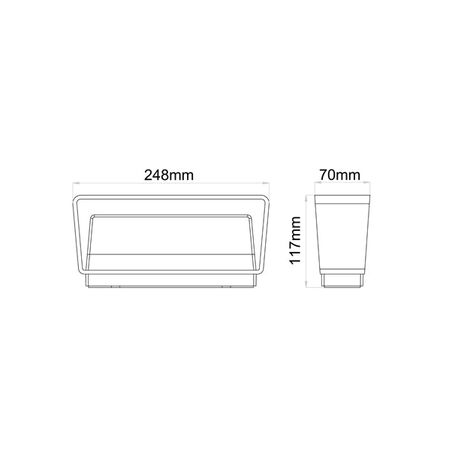

  • Dimensions (H x L x W): 70mm x 248mm x 248mm
  • Weight: 1.0 kg
Key Features
  • Exterior LED surface mounted up/down wall lights
  • Input voltage range: 100-240V AC 50/60Hz
  • Inbuilt constant current driver included
  • Housing & heatsink made of aluminium
  • Diffuser & bracket made of polycarbonate
  • Tri-CCT (3000K / 4000K / 6500K) selectable in one fitting
  • CCT switch located inside the fitting
  • 24pcs SMD2835 LED chips
  • CRI greater than 80 for good colour rendering
  • Power factor greater than 0.8
  • Ambient temperature range from -20 to 50°C
  • Not suitable for dimming
  • Suitable for 2-way switching
  • IP65 rated for dust and water resistance
  • Compatible with PIR or microwave sensors
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Exterior lighting for residential homes
  • Outdoor commercial building lighting
  • Pathway and garden wall illumination
  • Suitable for use with PIR or microwave sensors
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption.
  • Long lifespan reduces waste and replacement frequency.
  • Tri-CCT feature allows optimal lighting temperature selection to reduce unnecessary energy use.
Warranty Information

3 year replacement warranty.

Available Now

The CLA Lighting TOPATRI LED Tri-CCT Exterior Surface Mounted Up/Down Wall Light IP65 is available now for immediate purchase. Ideal for exterior residential and commercial lighting applications.
