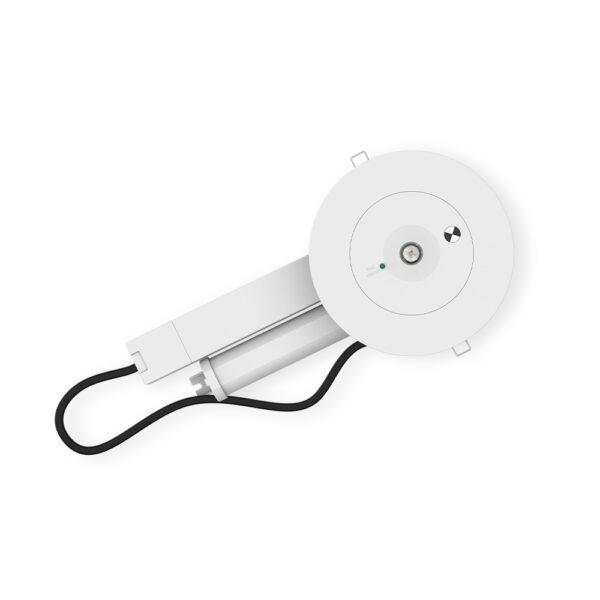

Ledfire Advanced Emergency Luminaire DALI | IP44 Rated | 90 Min Emergency Duration | 330 lm Output | by Ektor
The Ledfire Advanced Emergency Luminaire DALI is designed for reliable emergency lighting in commercial and public spaces. With an IP44 rating for moisture protection and a powerful 330 lm output, it ensures safety during power outages. This recessed luminaire features a durable polycarbonate body and supports DALI DT1 and wireless monitoring, making it ideal for modern installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, DALI Emergency Light, Wireless Emergency Luminaire, Recessed Emergency Light
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- Emergency Duration: 90 minutes
- Emergency Output Power: 2100 mW
- Emergency Lumen Output: 330 lm
- Operating Temperature Range: 0 to 40 °C
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Driver Type: DALI DT1 and Wireless IEC62386-104 with DT1
- Dimmable: No
- Replacement Battery Code: 01302
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for moisture protection
- Polycarbonate body material for durability
- Recessed installation type
- Non-maintained emergency mode with 90 minutes duration
- DALI DT1 and wireless IEC62386-104 emergency control and monitoring
- Maximum wattage of 2.5 W with standby power of 0.25 W
- Supports emergency test and monitoring over DALI and wireless protocols
- Emergency lumen output of 330 lm
- Emergency output power of 2100 mW
- Operating temperature range from 0 to 40 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings requiring emergency lighting
- Public spaces and corridors
- Recessed installation in ceilings for emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.5 W maximum wattage reduces energy use.
- Long product design life of 8 years minimizes waste and replacement frequency.
- Efficient LED technology reduces carbon footprint compared to traditional lighting.
Warranty Information
6 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Ledfire Advanced Emergency Luminaire DALI - D63 is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
