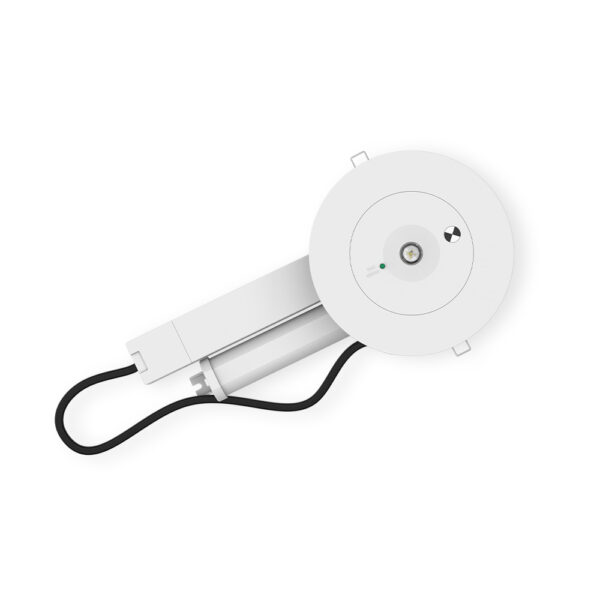

Ledfire Advanced Emergency Luminaire DALI | IP44 Rated | Non-Maintained Mode | 90 Min Emergency Duration | by Ektor
The Ledfire Advanced Emergency Luminaire DALI is designed for reliable emergency lighting in commercial and public buildings. With an IP44 rating for moisture protection and a non-maintained mode providing 90 minutes of emergency illumination, this recessed luminaire is perfect for areas requiring DALI monitored systems. Its durable polycarbonate body ensures longevity while maintaining low standby power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire DALI, Ledfire Emergency Light, DALI Emergency Downlight, Wireless Emergency Luminaire
Technical Specifications
- Input Voltage: 230Vac (216Vac - 253Vac)
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- Operating Temperature Range: 0 to 40 °C
- Emergency Output Power: 2100 mW
- Emergency Lumen Output: 330 lm
- Emergency Duration: 90 minutes
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Driver Type: DALI DT1 and Wireless IEC62386-104 with DT1
- Dimmable: No
- Replacement Battery Code: 01302
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 1.2 kg
Key Features
- Non-maintained emergency mode with 90 minutes duration
- DALI DT1 and wireless IEC62386-104 emergency control and monitoring
- IP44 rated front face for moisture protection
- Polycarbonate body for durability
- Low standby power consumption of 0.25 W
- Supports emergency test and monitoring over DALI and wireless protocols
- Recessed installation type with multiple wiring options including Wire By Click 5 pin plug
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and public buildings requiring emergency lighting
- Recessed installation in ceilings for emergency illumination
- Areas requiring DALI monitored emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during emergency operation
- Long product design life of 8 years reduces waste and replacement frequency
Warranty Information
6 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Advanced Emergency Luminaire DALI Black is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
