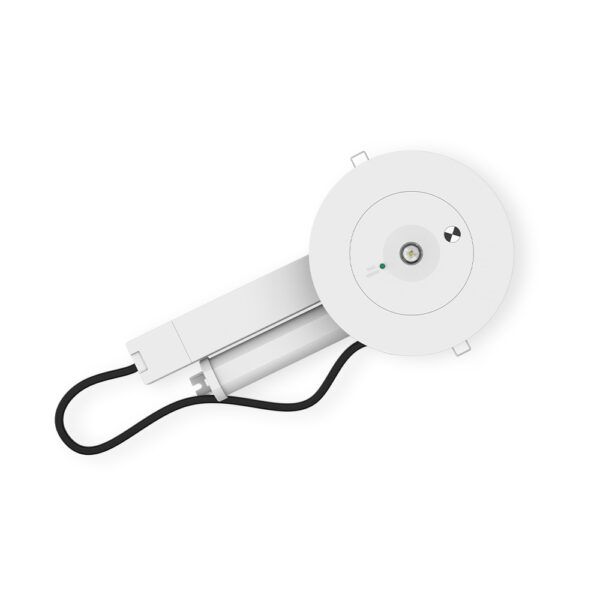

Ledfire Advanced Emergency Luminaire DALI | IP44 Rated | Non-Maintained Mode | 90 Min Emergency Duration | by Ektor
The Ledfire Advanced Emergency Luminaire DALI is designed for commercial and public buildings, featuring an IP44 rated front face for protection against splashing water. With a non-maintained emergency mode providing 90 minutes of illumination and a robust polycarbonate body, this recessed luminaire ensures safety and compliance in emergency situations. Ideal for areas requiring DALI monitored emergency lighting systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, DALI Emergency Light, Wireless Emergency Luminaire, Recessed Emergency Light
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- Driver Type: DALI DT1 Emergency and Wireless IEC62386-104 with DT1
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D63, C90:D63
- Emergency Output Power: 2100 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 330 lumens
- Replacement Battery Code: 01302
- Dimmable: No
- Flex & Plug or Lead Length: 1200 mm (varies by model)
- Wiring Type: Re-wireable Flex & Plug (2 pin), CMS Plug (5 pin), or WBC Plug (5 pin) depending on model
- Dimensions (H x L x W): 150mm x 80mm x 150mm
- Weight: 0.5 kg
Key Features
- IP44 rated front face for protection against splashing water
- Non-maintained emergency mode with 90 minutes duration
- DALI DT1 and wireless IEC62386-104 emergency control and monitoring
- Polycarbonate body with recessed installation
- Low standby power consumption of 0.25 W
- Maximum wattage of 2.5 W
- Emergency lumen output of 330 lm
- Supports emergency test and monitoring over DALI and wireless protocols
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and public buildings requiring emergency lighting
- Recessed installation in ceilings for emergency escape routes
- Areas requiring DALI monitored emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during normal and emergency operation
- Long product design life of 8 years reduces waste and replacement frequency
Warranty Information
6 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Advanced Emergency Luminaire DALI is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
