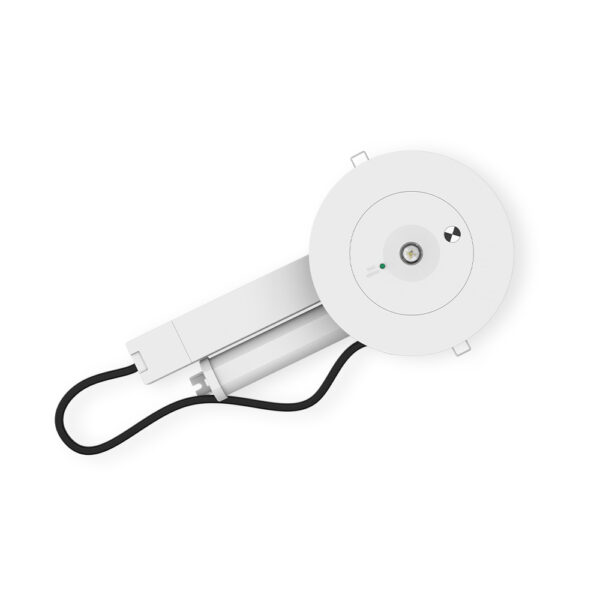

Ledfire Advanced Emergency Luminaire DALI | IP44 Rated | Polycarbonate Body | Non-Maintained Emergency Mode | by Ektor
Ledfire Advanced Emergency Luminaire DALI is designed for reliable emergency lighting in commercial and public spaces. With an IP44 rating and a durable polycarbonate body, it ensures safety and longevity. This recessed installation light features a non-maintained emergency mode with a 90-minute duration, making it ideal for effective evacuation lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire DALI, Ledfire Emergency Light, DALI Emergency Exit Light, Wireless Emergency Luminaire
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Standby Power: 0.25 W
- Driver Type: DALI DT1 Emergency and Wireless IEC62386-104 with DT1
- Emergency Mode: Non-Maintained
- Emergency Output Power: 2100 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 330 lumens
- Replacement Battery Code: 01302
- Dimmable: No
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- IP44 rated front face for moisture resistance
- Polycarbonate body for durability
- Recessed installation type
- Non-maintained emergency mode with 90 minutes duration
- DALI DT1 and Wireless IEC62386-104 compliant for emergency test and monitoring
- Maximum wattage 2.5 W with standby power 0.25 W
- Emergency lumen output of 330 lm
- Supports emergency classifications C0:D63 and C90:D63
- Input voltage range 216Vac - 253Vac (230Vac nominal)
- Operating temperature range 0 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings requiring emergency lighting
- Public spaces for safety and evacuation
- Recessed installation in ceilings for emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.5 W maximum wattage
- Long product design life of 8 years reduces waste
- Energy-efficient LED technology minimizes environmental impact
Warranty Information
6 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Advanced Emergency Luminaire DALI - D63 is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
