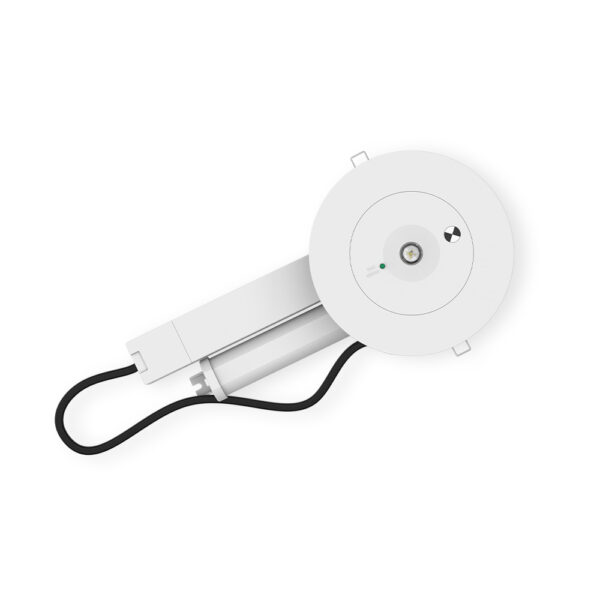

Ledfire Advanced Emergency Luminaire DALI | IP44 Rated | Polycarbonate Body | Non-Maintained Emergency Mode | by Ektor
The Ledfire Advanced Emergency Luminaire DALI is designed for reliable emergency lighting in commercial and public buildings. With an IP44 rating and a durable polycarbonate body, it ensures safety and longevity. This recessed luminaire features a non-maintained emergency mode with a 90-minute duration, making it ideal for areas requiring DALI monitored systems. Experience peace of mind with its 330 lumens output and compliance with emergency lighting standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, DALI Emergency Light, Wireless Emergency Luminaire, Recessed Emergency Light
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Input Voltage: 230Vac (-6%/+10%)
- Standby Power: 0.25 W
- Driver Type: DALI DT1 Emergency and Wireless IEC62386-104 with DT1
- Flex & Plug Length: 1200 mm (varies by model)
- Wiring Type: Re-wireable Flex & Plug (2 pin), CMS Plug (5 pin), or WBC Plug (5 pin)
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D63, C90:D63
- Emergency Output Power: 2100 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 330 lm
- Replacement Battery Code: 01302
- Dimmable: No
- Dimensions (H x L x W): 150mm x 80mm x 150mm
- Weight: 0.5 kg
Key Features
- IP44 rated front face for protection against splashing water
- Polycarbonate body for durability
- Recessed installation type
- Non-maintained emergency mode with 90 minutes duration
- DALI DT1 and Wireless IEC62386-104 compliant for emergency test and monitoring
- Emergency output power of 2100 mW with 330 lumens output
- Standby power consumption of 0.25 W
- Operating temperature range from 0 to 40 °C
- Input voltage range 216Vac - 253Vac (230Vac nominal)
- Driver included with wireless and DALI options
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards and proper integration with DALI emergency systems.
Applications
- Commercial and public buildings requiring emergency lighting
- Recessed installation in ceilings for emergency illumination
- Areas requiring DALI monitored emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy usage
- Long product design life of 8 years minimizes waste and replacement frequency
- Energy-efficient LED technology
Warranty Information
6 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Ledfire Advanced Emergency Luminaire DALI is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
