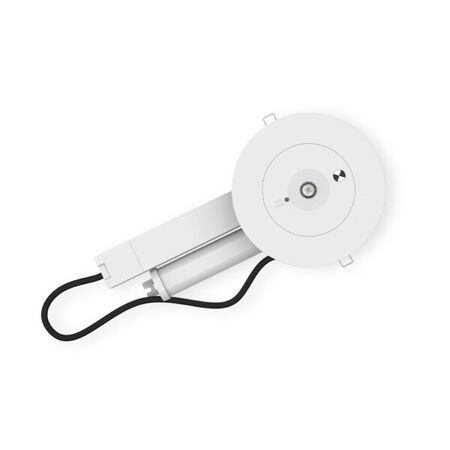

Ledfire Advanced Emergency Luminaire DALI | IP44 Rated | Polycarbonate Body | Non-Maintained Emergency Mode | by Ektor

BRAND: Ektor
SKU: EV-LEDFIRE-ADV-DA
$228.10 List price: $276.10
+
Ledfire Advanced Emergency Luminaire DALI is designed for reliable emergency lighting in commercial and public spaces. With an IP44 rating for moisture resistance and a durable polycarbonate body, this recessed luminaire features a non-maintained emergency mode lasting 90 minutes, ensuring safety during power outages. Ideal for corridors and public areas, it supports DALI monitoring for enhanced control.

Alternatively Known As: Emergency LED Luminaire, DALI Emergency Light, Wireless Emergency Luminaire, Recessed Emergency Light

Technical Specifications
  • IP Rating: IP44 front face only
  • Body Material: Polycarbonate
  • Installation Type: Recessed
  • Working Temperature Range: 0 to 40 °C
  • Input Frequency: 50 Hz
  • Input Voltage: 230Vac (-6%/+10%)
  • Maximum Wattage: 2.5 W
  • Standby Power: 0.25 W
  • Driver Type: DALI DT1 Emergency and Wireless IEC62386-104 with DT1
  • Emergency Mode: Non-Maintained
  • Emergency Classification: C0:D63, C90:D63
  • Emergency Output Power: 2100 mW
  • Emergency Duration: 90 minutes
  • Emergency Lumen Output: 330 lm
  • Replacement Battery Code: 01302
  • Dimmable: No
  • Dimensions (H x L x W): 150mm x 80mm x 150mm
  • Weight: 0.5 kg
Key Features
  • IP44 rated front face for moisture resistance
  • Polycarbonate body for durability
  • Recessed installation type
  • Non-maintained emergency mode with 90 minutes duration
  • DALI DT1 and Wireless IEC62386-104 emergency control and monitoring
  • Maximum wattage of 2.5 W with standby power of 0.25 W
  • Emergency lumen output of 330 lm
  • Supports emergency test and monitoring over DALI and IEC62386-104
  • Product design life of 8 years
Professional Installation Requirements
  • Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
  • Commercial buildings requiring emergency lighting
  • Public spaces and corridors
  • Recessed installation in ceilings for emergency illumination
Standards & Compliance
  • AS/NZS 60598.1 – Luminaires General Requirements
  • AS 60598.2.22 – Emergency Lighting Luminaires
  • AS/NZS 61347.1 – Lamp Control Gear
  • AS/NZS 61347.2.13 – Emergency Lighting Control Gear
  • AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
  • AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
  • Low standby power consumption reduces energy usage
  • Long product design life minimizes waste and replacement frequency
  • Energy-efficient LED technology
Warranty Information

6 years return to base (RTB) warranty for commercial use.

Available Now

The Ektor Ledfire Advanced Emergency Luminaire DALI - D63 - W/F&P is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
