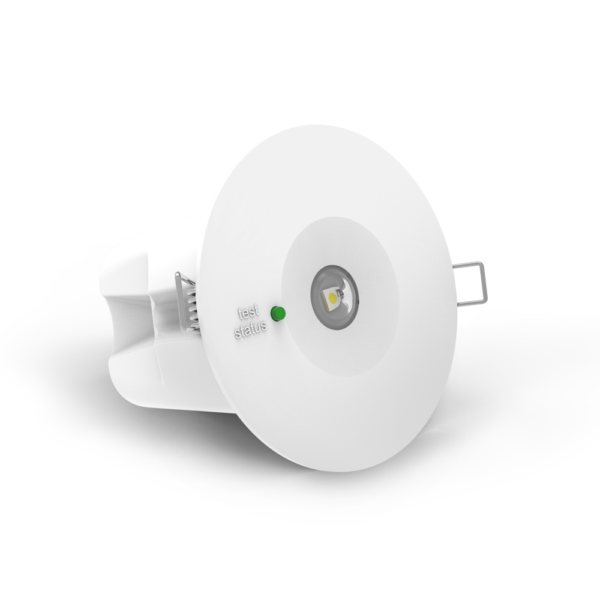

Ledfire Basic Emergency Luminaire | IP44 Rated | 90 Minutes Emergency Duration | 200 Lumen Output | by Ektor
The Ledfire Basic Emergency Luminaire is designed for reliable emergency lighting in commercial and public buildings. With an IP44 rating for moisture protection and a powerful 200 lumen output, it ensures visibility during emergencies. This recessed light features a non-maintained emergency mode with a 90-minute duration, making it an essential safety solution for any facility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Emergency Recessed Light, Black Emergency Light, Ledfire Emergency Light
Technical Specifications
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 2 W
- LED Wattage: 1.4 W
- Colour Temperature: Not specified
- Emergency Output Power: 1400 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 200 lm
- IP Rating: IP44 front face only
- Driver Type: Fixed output, integrated
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Dimensions (H x L x W): 150mm x 80mm x 150mm
- Weight: 0.8 kg
Key Features
- Non-maintained emergency mode with 90 minutes duration
- IP44 rated front face for moisture protection
- Fixed output integrated driver included
- Recessed installation type with black polycarbonate body
- Emergency lumen output of 200 lm
- Replacement battery code 01307
- Standby power consumption of 0.45 W
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency lighting
- Public and private facilities requiring emergency illumination
- Recessed installation in ceilings for emergency lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy waste
- Long product design life of 6 years minimizes replacement frequency
- Energy-efficient LED technology
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Basic Emergency Luminaire - Black - D40 - W/F&P is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
