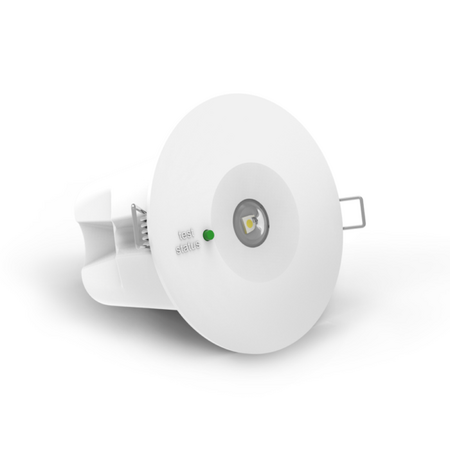

Ledfire Basic Emergency Luminaire IP44 Rated Non Maintained Ektor
Ektor Ledfire Basic Emergency Luminaire features 1400m power rating, 200 lm w emergency lumen output, and 1200mm length.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Emergency Recessed Light, Emergency Exit Light, Emergency Ceiling Light
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Maximum Wattage: 2 W
- Standby Power: 0.45 W
- LED Wattage: 1.4 W
- Colour Temperature: Not specified
- Driver Type: Fixed output, integrated
- Emergency Mode: Non-maintained
- Emergency Duration: 90 minutes
- Emergency Output Power: 1400 mW
- Emergency Lumen Output: 200 lm
- Body Material: Polycarbonate
- Installation Type: Recessed
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Product Design Life: 6 years
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- IP44 rated front face for moisture protection
- Non-maintained emergency mode with 90 minutes duration
- Fixed output integrated driver included
- Polycarbonate body for durability
- Re-wireable flex and plug with 1200 mm lead
- Emergency lumen output of 200 lm
- Operating temperature range from 0 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety and emergency lighting standards.
Applications
- Commercial buildings
- Emergency lighting in public and private spaces
- Recessed installation in ceilings
Standards & Compliance
- AS/NZS 60598.1 – Luminaires
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2W maximum wattage
- Long product design life of 6 years reduces waste
- Energy-efficient LED technology
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Basic Emergency Luminaire - D40 is available now for immediate purchase. Ideal for commercial emergency lighting applications requiring reliable and compliant recessed luminaires.
