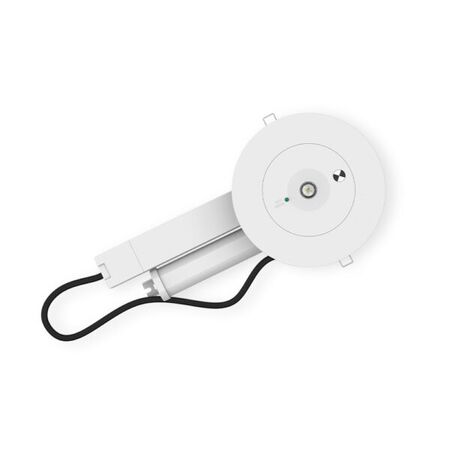

Ledfire Core Emergency Luminaire | IP44 Rated | Non-Maintained Mode | 90 Minutes Duration | by Ektor

BRAND: Ektor
SKU: EV-LEDFIRE-CORE
$110.50 List price: $133.80
+
The Ledfire Core Emergency Luminaire is designed for reliable emergency lighting, featuring an IP44 rated front face for moisture resistance and a non-maintained mode with a 90-minute duration. Ideal for commercial and residential applications, this recessed luminaire ensures compliance with safety regulations while providing 250 lumens of emergency output.

Alternatively Known As: Emergency Recessed Luminaire, Emergency LED Light, Emergency Exit Light, Emergency Downlight

Technical Specifications
  • IP Rating: IP44 front face only
  • Body Material: Polycarbonate
  • Installation Type: Recessed
  • Working Temperature Range: 0 to 40 °C
  • Input Frequency: 50 Hz
  • Input Voltage: 230Vac (-6%/+10%)
  • Maximum Wattage: 1.6 W
  • Standby Power: 0.45 W
  • Driver Type: Fixed output
  • Flex & Plug Length: 1200 mm
  • Wiring Type: Re-wireable flex & plug (2 pin)
  • Emergency Mode: Non-maintained
  • Emergency Classification: C0:D50, C90:D50
  • Emergency Output Power: 1500 mW
  • Emergency Duration: 90 minutes
  • Emergency Lumen Output: 250 lm
  • Replacement Battery Code: 01300
  • Product Design Life: 6 years
  • Dimensions (H x L x W): 50mm x 150mm x 150mm
  • Weight: 0.5 kg
Key Features
  • IP44 rated front face for moisture resistance
  • Non-maintained emergency mode with 90 minutes duration
  • Fixed output driver included
  • Re-wireable flex and plug with 1200 mm lead
  • Emergency lumen output of 250 lm
  • Polycarbonate body for durability
  • Operating temperature range from 0 to 40 °C
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper emergency functionality.
Applications
  • Commercial and residential emergency lighting
  • Recessed installation in corridors, stairwells, and exit routes
  • Emergency lighting for compliance with safety regulations
Standards & Compliance
  • AS/NZS 60598.1 – Luminaires General Requirements
  • AS 60598.2.22 – Emergency Lighting Luminaires
  • AS/NZS 61347.1 – Lamp Control Gear
  • AS/NZS 61347.2.13 – Emergency Lighting Control Gear
  • AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
  • AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
  • Low power consumption with 1.6 W maximum wattage
  • Long product design life of 6 years reduces waste
  • Energy-efficient LED technology
Warranty Information

5 years return to base (RTB) warranty for commercial use.

Available Now

The Ektor Ledfire Core Emergency Luminaire - D50 is available now for immediate purchase. Ideal for commercial and residential emergency lighting applications.
