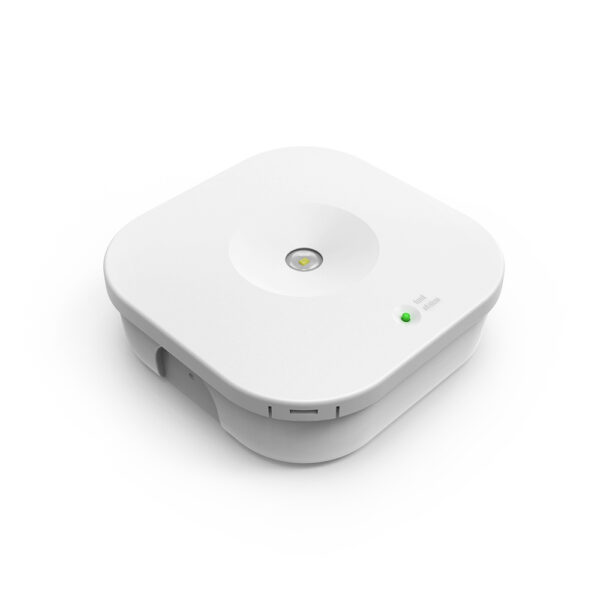

Ledfire Core Surface Mount IP65 | IP65 Rated | Non-Maintained Emergency Mode | 90 Minutes Duration | by Ektor
Ledfire Core Surface Mount IP65 is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating for dust and water protection, this surface mount light features a non-maintained emergency mode that lasts up to 90 minutes, ensuring safety during power outages. Built with a durable polycarbonate body, it’s perfect for emergency exit and safety lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Surface Mount Light, IP65 Emergency LED Light, Ledfire Core Emergency Light
Technical Specifications
- IP Rating: IP65
- Body Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 2 W
- Input Voltage: 230Vac (-6%/+10%)
- Standby Power: 0.4 W
- Driver Type: Fixed output, integrated
- Wiring Type: Re-wireable terminal block (3 pin)
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D50, C90:D50
- Emergency Output Power: 1650 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 250 lm
- Replacement Battery Code: 13845
- Product Design Life: 6 years
- Dimensions (H x L x W): 50mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- Surface mount installation
- Non-maintained emergency mode with 90 minutes duration
- Integrated fixed output driver with re-wireable terminal block
- Emergency lumen output of 250 lm
- Product design life of 6 years
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper emergency function.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP65 rated fixtures
- Emergency exit and safety lighting in buildings
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption of 0.4 W reduces energy usage
- Long product design life minimizes waste and replacement frequency
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Core Surface Mount IP65 - D50 is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
