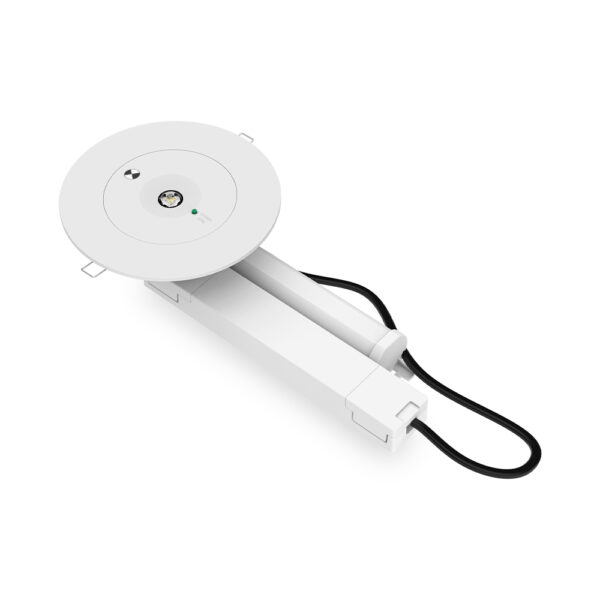

Ledfire Pro Emergency Luminaire | IP44 Rated | Non-Maintained Mode | Wireless DALI DT1 | by Ektor
Ledfire Pro Emergency Luminaire is designed for reliable emergency lighting in commercial and public spaces. With an IP44 rating for moisture protection and a non-maintained emergency mode lasting 90 minutes, this recessed light ensures safety during power outages. Its durable polycarbonate body and wireless DALI DT1 control make it a perfect choice for modern installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Wireless Emergency Light, Recessed Emergency Light, Ledfire Pro Emergency Light
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- LED Wattage: 4.3 W
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D80, C90:D80
- Emergency Output Power: 2900 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320-380 lm depending on model
- Driver Type: Wireless IEC62386-104 with DALI DT1
- Dimmable: No
- Flex & Plug Length: 1200 mm (varies by model)
- Replacement Battery Code: 01303
- Product Design Life: 12 years
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for moisture protection
- Non-maintained emergency mode with 90 minutes duration
- Wireless IEC62386-104 DALI DT1 emergency control and monitoring
- Polycarbonate body for durability
- Recessed installation type
- Low standby power consumption of 0.25 W
- Maximum wattage of 2.5 W
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless
- Product design life of 12 years
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper emergency lighting function.
Applications
- Commercial buildings emergency lighting
- Office buildings
- Public spaces requiring emergency illumination
- Recessed installation in ceilings
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during normal and emergency operation
- Long product design life reduces waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Pro Emergency Luminaire is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
