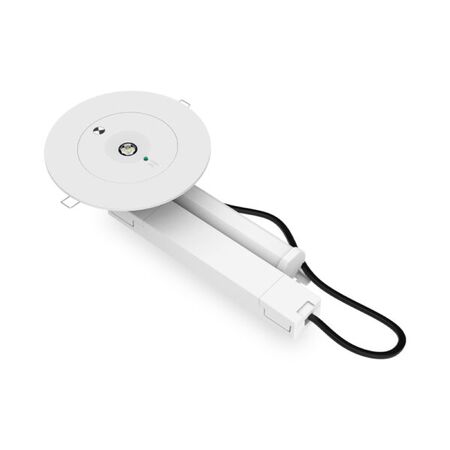

Ledfire Pro Emergency Luminaire | IP44 Rated | Polycarbonate Body | 90 Min Emergency Duration | by Ektor
Ledfire Pro Emergency Luminaire is designed for reliable emergency lighting in commercial and public buildings. With an IP44 rating and a durable polycarbonate body, it ensures protection against splashing water. This recessed installation light features a 90-minute emergency duration, making it ideal for corridors, stairwells, and exit routes, ensuring safety during power outages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Emergency Exit Light, Recessed Emergency Light, Wireless Emergency Luminaire
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- LED Wattage: 4.3 W
- Input Frequency: 50 Hz
- Working Temperature Range: 0 to 40 °C
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320-380 lm depending on model
- Emergency Classification: C0:D80, C90:D80
- Driver Type: Wireless IEC62386-104 with DT1
- Standby Power: 0.25 W
- Body Material: Polycarbonate
- Installation Type: Recessed
- IP Rating: IP44 front face only
- Dimensions (H x L x W): 80mm x 250mm x 250mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for protection against splashing water
- Polycarbonate body for durability
- Non-dimmable LED driver included
- Wireless IEC62386-104 compliant with DT1 for emergency test and monitoring
- Emergency duration of 90 minutes
- Emergency output power of 2900 mW
- Supports DALI monitored emergency control
- Recessed installation type
- Standby power consumption of 0.25 W
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial and public buildings requiring emergency lighting
- Recessed installation in corridors, stairwells, and exit routes
- Non-maintained emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy usage
- Long product design life of 12 years minimizes waste
- LED technology provides energy-efficient emergency lighting
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Pro Emergency Luminaire - D80 with Terminal Block is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
