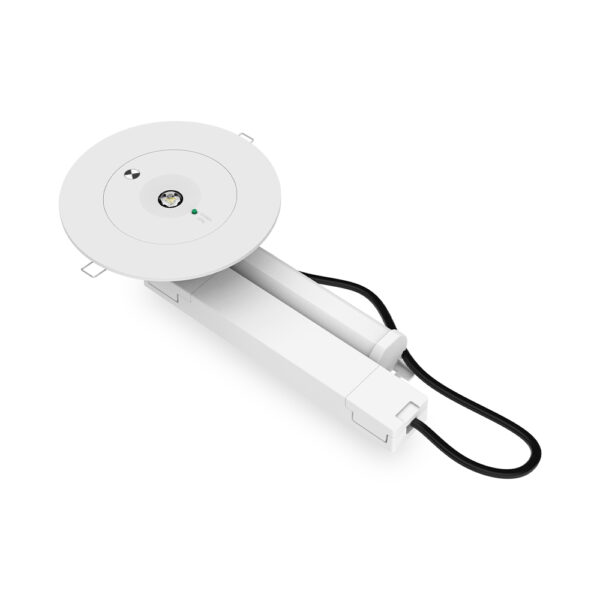

Ledfire Pro Emergency Luminaire | IP44 Rated | Polycarbonate Body | Non-Maintained | by Ektor
Ledfire Pro Emergency Luminaire is designed for reliable emergency lighting in commercial and public buildings. With an IP44 rating and a durable polycarbonate body, it ensures safety and longevity. Ideal for recessed installation in ceilings, this luminaire features a non-maintained emergency mode with a 90-minute duration, providing peace of mind during power outages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Emergency Exit Light, Recessed Emergency Light, Wireless Emergency Luminaire
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- LED Wattage: 4.3 W
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D80, C90:D80
- Emergency Output Power: 2900 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320-380 lm
- Driver Type: Wireless (IEC62386-104) with DALI DT1
- Dimmable: No
- Operating Temperature Range: 0 to 40 °C
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Dimensions (H x L x W): 80mm x 200mm x 200mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for protection against splashing water
- Polycarbonate body for durability
- Non-dimmable LED driver included
- Wireless DALI DT1 emergency control with IEC62386-104 compliance
- Emergency duration of 90 minutes
- Emergency lumen output of 320-380 lumens depending on model
- Supports wireless test and monitoring over IEC62386-104
- Recessed installation type
- Operating temperature range 0 to 40 °C
- Low standby power consumption of 0.25 W
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial and public buildings emergency lighting
- Recessed installation in ceilings for emergency escape routes
- Non-maintained emergency lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during normal and emergency operation
- Long product design life of 12 years reduces waste and replacement frequency
- Wireless monitoring reduces need for manual testing, lowering maintenance resource use
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Pro Emergency Luminaire - D80 is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
