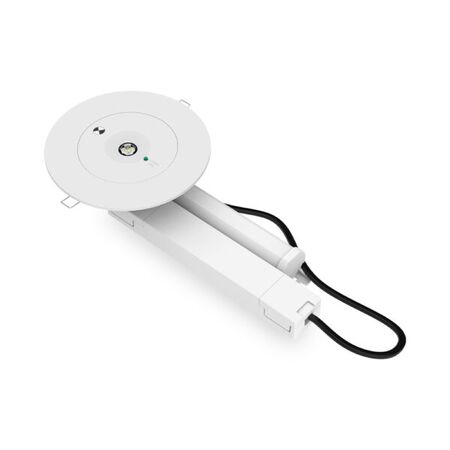

Ledfire Pro Emergency Luminaire IP44 Rated Polycarbonate DALI Terminal Block Ektor

BRAND: Ektor
SKU: EV-LEDFIRE-PRO-DA-JB
$298.30 List price: $361.00
+ −
30 Days Return Electricians Unlock Trade Access
Ektor Ledfire Pro Emergency Luminaire is designed for reliable emergency lighting in commercial and public buildings.

Alternatively Known As: Emergency LED Luminaire, Emergency Exit Light, Recessed Emergency Light, Wireless Emergency Luminaire

Technical Specifications
  • Input Voltage: 230Vac (-6%/+10%)
  • Maximum Wattage: 2.5 W
  • LED Wattage: 4.3 W
  • Input Frequency: 50 Hz
  • Working Temperature Range: 0 to 40 °C
  • Emergency Duration: 90 minutes
  • Emergency Lumen Output: 320-380 lm depending on model
  • Emergency Classification: C0:D80, C90:D80
  • Driver Type: Wireless IEC62386-104 with DT1
  • Standby Power: 0.25 W
  • Body Material: Polycarbonate
  • Installation Type: Recessed
  • IP Rating: IP44 front face only
  • Dimensions (H x L x W): 80mm x 250mm x 250mm
  • Weight: 1.2 kg
Key Features
  • IP44 rated front face for protection against splashing water
  • Polycarbonate body for durability
  • Non-dimmable LED driver included
  • Wireless IEC62386-104 compliant with DT1 for emergency test and monitoring
  • Emergency duration of 90 minutes
  • Emergency output power of 2900 mW
  • Supports DALI monitored emergency control
  • Recessed installation type
  • Standby power consumption of 0.25 W
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
  • Commercial and public buildings requiring emergency lighting
  • Recessed installation in corridors, stairwells, and exit routes
  • Non-maintained emergency lighting systems
Standards & Compliance
  • AS/NZS 60598.1 – Luminaires General Requirements
  • AS 60598.2.22 – Emergency Lighting Luminaires
  • AS/NZS 61347.1 – Lamp Control Gear
  • AS/NZS 61347.2.13 – Emergency Lighting Control Gear
  • AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
  • AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
  • Low standby power consumption reduces energy usage
  • Long product design life of 12 years minimizes waste
  • LED technology provides energy-efficient emergency lighting
Warranty Information

8 years return to base warranty for commercial use.

Available Now

The Ektor Ledfire Pro Emergency Luminaire - D80 with Terminal Block is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
