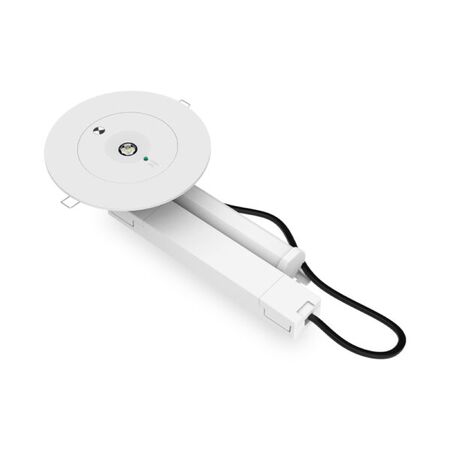

Ledfire Pro Emergency Luminaire | IP44 Rated | Wireless DALI DT1 Control | 90 Min Emergency Duration | by Ektor
The Ledfire Pro Emergency Luminaire is designed for reliable emergency lighting in commercial and public buildings. With an IP44 rating for moisture protection and a wireless DALI DT1 control system, it ensures safety during emergencies. This recessed installation light features a durable polycarbonate body and provides up to 90 minutes of emergency illumination, making it ideal for escape routes and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Emergency Exit Light, Wireless Emergency Light, Recessed Emergency Light
Technical Specifications
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Maximum Wattage: 2.5 W
- LED Wattage: 4.3 W
- Input Frequency: 50 Hz
- Standby Power: 0.25 W
- Emergency Output Power: 2900 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320-380 lm
- Driver Type: Wireless IEC62386-104 with DALI DT1
- Installation Type: Recessed
- IP Rating: IP44 front face only
- Operating Temperature Range: 0 to 40 °C
- Body Material: Polycarbonate
- Dimmable: No
- Dimensions (H x L x W): 80mm x 250mm x 250mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for moisture protection
- Polycarbonate body for durability
- Non-dimmable LED driver included
- Wireless IEC62386-104 compliant with DALI DT1 emergency control
- Emergency duration of 90 minutes
- Emergency lumen output of 320-380 lm depending on model
- Supports wireless test and monitoring over IEC62386-104
- Recessed installation type
- Standby power consumption of 0.25 W
- Operating temperature range 0 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with Australian electrical and safety standards.
Applications
- Commercial and public buildings requiring emergency lighting
- Recessed installation in ceilings for emergency escape routes
- Non-maintained emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy waste
- Long product design life of 12 years minimizes replacement frequency
- Energy-efficient LED technology reduces overall power usage
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Pro Emergency Luminaire - D80 - W/CMS is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
