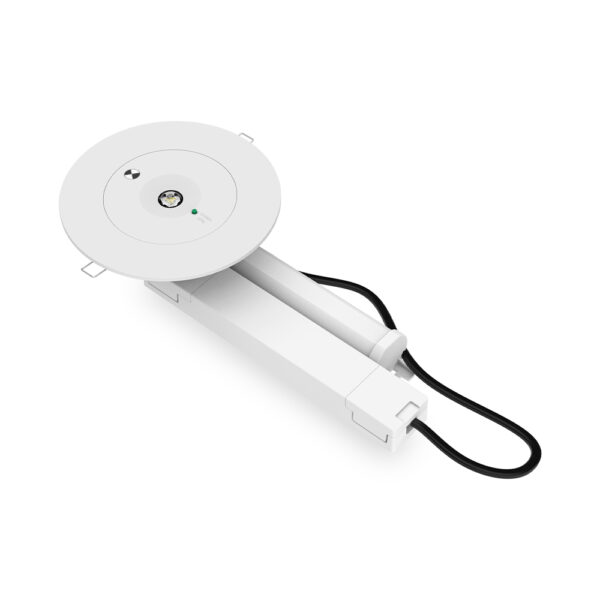

Ledfire Pro Emergency Luminaire | IP44 Rated | Wireless DALI DT1 Driver | 90 Min Emergency Duration | by Ektor
Ledfire Pro Emergency Luminaire is designed for recessed installation, featuring an IP44 rating for protection against splashing water and a durable polycarbonate body. Ideal for commercial and public buildings, this non-maintained emergency light provides 90 minutes of emergency illumination with a lumen output of up to 380 lm, ensuring safety during power outages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Wireless Emergency Light, Recessed Emergency Light, Ledfire Pro Emergency Light
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- LED Wattage: 4.3 W
- Driver Type: Wireless IEC62386-104 with DALI DT1 emergency
- Dimmable: No
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D80, C90:D80
- Emergency Output Power: 2900 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320 lm or 380 lm depending on model
- Emergency Control: Wireless DALI Monitored IEC62386-104
- Product Design Life: 12 years
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for protection against splashing water
- Polycarbonate body for durability
- Recessed installation type
- Wireless IEC62386-104 compliant DALI DT1 emergency driver included
- Non-dimmable
- Emergency duration of 90 minutes
- Emergency output power of 2900 mW
- Emergency lumen output of 320 lm or 380 lm depending on model
- Supports wireless test and monitoring over IEC62386-104
- Product design life of 12 years
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial and public buildings emergency lighting
- Recessed installation in ceilings for emergency escape routes
- Non-maintained emergency lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs for Buildings
Environmental Benefits
- Low power consumption with 2.5 W maximum wattage
- Long product design life reduces waste and replacement frequency
- Wireless monitoring reduces need for manual testing, saving energy and resources
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Pro Emergency Luminaire - D80 is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
