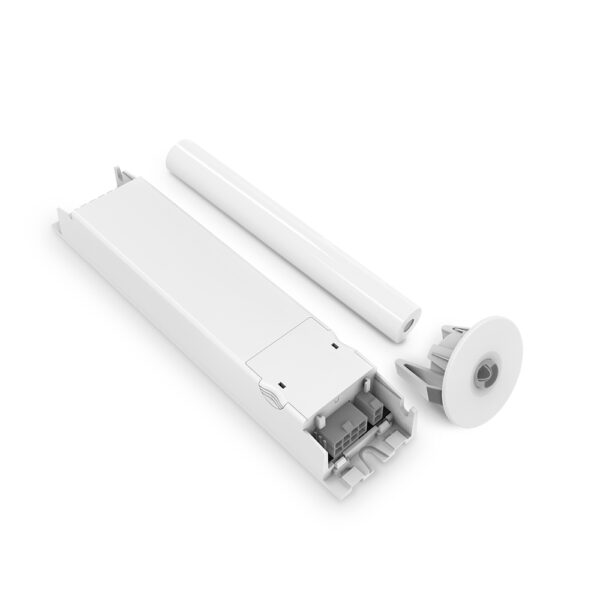

Ledfire Pro OEM Kit D32 White | IP20 Rated | DALI Emergency Driver | 90 Min Emergency Duration | by Ektor
The Ledfire Pro OEM Kit D32 White is designed for commercial and industrial emergency lighting, featuring a DALI DT1 emergency driver and a 90-minute non-maintained emergency mode. With an IP20 rating and a polycarbonate body, it ensures reliable performance in office buildings and public areas, making it a perfect choice for safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Light, DALI Emergency Light, Recessed Emergency Light, LED Fire Emergency Kit
Technical Specifications
- IP Rating: IP20
- Maximum Wattage: 2 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Standby Power: 0.25 W
- Lamp Voltage: 9 V
- Lamp Current: 130 mA
- LED Wattage: 2.7 W
- Driver Type: DALI DT1 Emergency
- Wiring: Re-wireable terminal block (5 pin)
- Emergency Classification: C0:D32, C90:D32
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 208 lm
- Emergency Control: DALI Monitored (IEC62386 compliant)
- Working Temperature Range: 0 to 40 °C
- Body Material: Polycarbonate
- Installation Type: Recessed
- Dimensions (H x L x W): 40mm x 120mm x 120mm
- Weight: 0.3 kg
Key Features
- Non-maintained emergency mode with 90 minutes duration
- DALI DT1 emergency driver included with monitoring and testing support
- Emergency output power of 1200 mW and lumen output of 208 lm
- Polycarbonate body with recessed installation
- Operating temperature range from 0 to 40 °C
- Low standby power consumption of 0.25 W
- Product design life of 12 years
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Recessed installation in office buildings, retail spaces, and public areas
- Non-maintained emergency lighting for safety compliance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during emergency operation
- Long product design life minimizes waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ledfire Pro OEM Kit D32 White by Ektor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
